Specifications: KTM X-Bow GT-XR 2.5 TFSI (500 Hp) DSG 2023, 2024, 2025

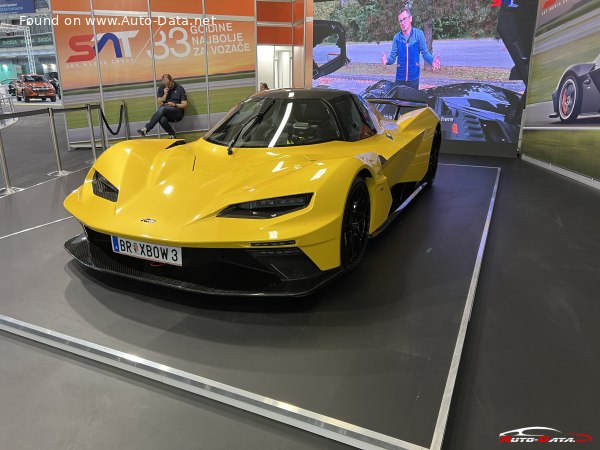

2023 KTM X-Bow GT-XR - Photo 1

KTM X-Bow GT-XR 2.5 TFSI (500 Hp) DSG – Full specifications
General information
Brand KTM
Model X-Bow
Generation X-Bow GT-XR
Modification (Engine) 2.5 TFSI (500 Hp) DSG
Start of production January, 2023 year
Powertrain Architecture Internal Combustion engine
Body type Coupe
Seats 2
Doors 1
Performance specs
Combined fuel consumption (WLTP) 9.1 l/100 km
25.85 US mpg
31.04 UK mpg
10.99 km/l
CO2 emissions (WLTP) 214 g/km
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 3.4 sec
Acceleration 0 – 62 mph 3.4 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 3.2 sec
Maximum speed 280 km/h
173.98 mph
Emission standard Euro 6d
Weight-to-power ratio 2.3 kg/Hp, 442.5 Hp/tonne
Weight-to-torque ratio 1.9 kg/Nm, 514.2 Nm/tonne
Engine specs
Power 500 Hp @ 6350 rpm.
Power per litre 201.6 Hp/l
Torque 581 Nm @ 5550 rpm.
428.52 lb.-ft. @ 5550 rpm.
Maximum engine speed 7000 rpm.
Engine layout Rear, Transverse
Engine displacement 2480 cm3
151.34 cu. in.
Number of cylinders 5
Engine configuration Inline
Cylinder Bore 82.5 mm
3.25 in.
Piston Stroke 92.8 mm
3.65 in.
Compression ratio 10:1
Number of valves per cylinder 4
Fuel injection system Direct injection and Multi-port manifold injection
Engine aspiration Turbocharger, Intercooler
Valvetrain DOHC
Engine oil capacity 5.8 l
6.13 US qt | 5.1 UK qt
Coolant 8 l
8.45 US qt | 7.04 UK qt

Space, Volume and weights
Kerb Weight 1130 kg
2491.22 lbs.
Max. weight 1600 kg
3527.4 lbs.
Max load 470 kg
1036.17 lbs.
Trunk (boot) space – minimum 160 l
5.65 cu. ft.
Fuel tank capacity 96 l
25.36 US gal | 21.12 UK gal
Dimensions
Length 4626 mm
182.13 in.
Width 2041 mm
80.35 in.
Height 1164 mm
45.83 in.
Wheelbase 2850 mm
112.2 in.
Ride height (ground clearance) 90 mm
3.54 in.
Minimum turning circle (turning diameter) 13 m
42.65 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the rear wheels of the vehicle.
Drive wheel Rear wheel drive
Number of gears and type of gearbox 7 gears, automatic transmission DSG
Front suspension Double wishbone, Independent coil spring
Rear suspension Double wishbone, Independent coil spring
Front brakes Ventilated discs, 365×34 mm
Rear brakes Ventilated discs, 356×32 mm
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size Front wheel tires: 235/35 R19; 235/30 R20
Rear wheel tires: 295/35 R20; 295/30 R21
Wheel rims size Front wheel rims: 9J x 19; 9J x 20
Rear wheel rims: 11J x 20; 11J x 21
