| General information | |
|---|---|
| Brand | Lamborghini |

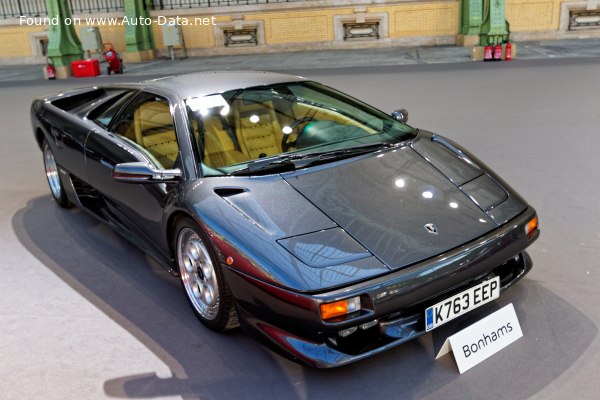

| Model | Diablo |
| Generation | Diablo |
| Modification (Engine) | VT (492 Hp) |
| Start of production | 1990 year |
| End of production | 1998 year |
| Powertrain Architecture | Internal Combustion engine |
| Body type | Coupe |
| Seats | 2 |
| Doors | 2 |
| Performance specs | |
| Fuel consumption (economy) – urban | 20 l/100 km 11.76 US mpg 14.12 UK mpg 5 km/l |
| Fuel consumption (economy) – extra urban | 13.3 l/100 km 17.69 US mpg 21.24 UK mpg 7.52 km/l |
| Fuel consumption (economy) – combined | 15.2 l/100 km 15.47 US mpg 18.58 UK mpg 6.58 km/l |
| Fuel Type | Petrol (Gasoline) |
| Acceleration 0 – 100 km/h | 4.1 sec |
| Acceleration 0 – 62 mph | 4.1 sec |
| Acceleration 0 – 60 mph (Calculated by Auto-Data.net) | 3.9 sec |
| Maximum speed | 325 km/h 201.95 mph |
| Weight-to-power ratio | 3.3 kg/Hp, 302.8 Hp/tonne |
| Weight-to-torque ratio | 2.8 kg/Nm, 356.9 Nm/tonne |
| Engine specs | |
| Power | 492 Hp @ 6800 rpm. |
| Power per litre | 86.2 Hp/l |
| Torque | 580 Nm @ 5200 rpm. 427.79 lb.-ft. @ 5200 rpm. |
| Engine layout | Middle, Longitudinal |
| Engine Model/Code | L 522 |
| Engine displacement | 5707 cm3 348.26 cu. in. |
| Number of cylinders | 12 |
| Engine configuration | V-engine |
| Cylinder Bore | 87 mm 3.43 in. |
| Piston Stroke | 80 mm 3.15 in. |
| Compression ratio | 10:1 |
| Number of valves per cylinder | 4 |
| Fuel injection system | Multi-port manifold injection |
| Engine aspiration | Naturally aspirated engine |
| Valvetrain | DOHC |
| Engine oil capacity | 14 l 14.79 US qt | 12.32 UK qt |
| Engine oil specification |  Log in to see. |
| Coolant | 15 l 15.85 US qt | 13.2 UK qt |
|
|
|
| Space, Volume and weights | |
| Kerb Weight | 1625 kg 3582.51 lbs. |
| Max. weight | 1840 kg 4056.51 lbs. |
| Max load | 215 kg 473.99 lbs. |
| Trunk (boot) space – minimum | 140 l 4.94 cu. ft. |
| Fuel tank capacity | 100 l 26.42 US gal | 22 UK gal |
| Dimensions | |
| Length | 4460 mm 175.59 in. |
| Width | 2040 mm 80.31 in. |
| Height | 1105 mm 43.5 in. |
| Wheelbase | 2650 mm 104.33 in. |
| Front track | 1540 mm 60.63 in. |
| Rear (Back) track | 1640 mm 64.57 in. |
| Drivetrain, brakes and suspension specs | |
| Drive wheel | All wheel drive (4×4) |
| Number of gears and type of gearbox | 5 gears, manual transmission |
| Front suspension | Double wishbone |
| Rear suspension | Double wishbone |
| Front brakes | Ventilated discs |
| Rear brakes | Ventilated discs |
| Assisting systems | ABS (Anti-lock braking system) |
| Steering type | Steering rack and pinion |
| Power steering | Hydraulic Steering |
| Tires size | 245/40 ZR17; 335/35ZR17 |
