Specifications: Lamborghini Gallardo LP 560-4 Spyder 5.2 V10 (560 Hp) AWD 2009, 2010, 2011, 2012, 2013

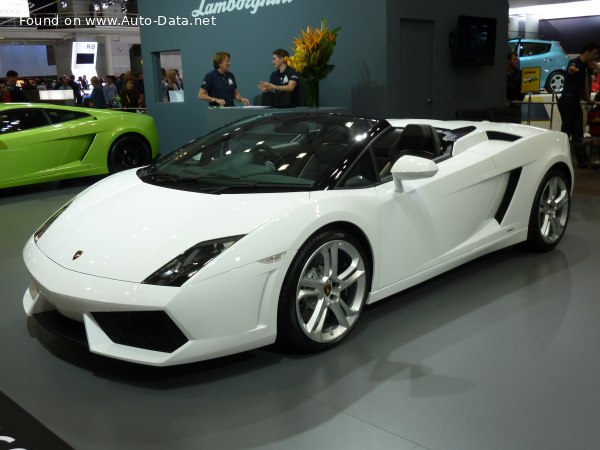

2009 Lamborghini Gallardo LP 560-4 Spyder - Photo 1

Lamborghini Gallardo LP 560-4 Spyder 5.2 V10 (560 Hp) AWD – Full specifications
General information
Brand Lamborghini
Model Gallardo
Generation Gallardo LP 560-4 Spyder
Modification (Engine) 5.2 V10 (560 Hp) AWD
Start of production 2009 year
End of production 2013 year
Powertrain Architecture Internal Combustion engine
Body type Roadster
Seats 2
Doors 2
Performance specs
Fuel consumption (economy) – urban 22.7 l/100 km
10.36 US mpg
12.44 UK mpg
4.41 km/l
Fuel consumption (economy) – extra urban 10.3 l/100 km
22.84 US mpg
27.43 UK mpg
9.71 km/l
Fuel consumption (economy) – combined 14.8 l/100 km
15.89 US mpg
19.09 UK mpg
6.76 km/l
CO2 emissions 354 g/km
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 4 sec
Acceleration 0 – 62 mph 4 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 3.8 sec
Maximum speed 324 km/h
201.32 mph
Emission standard Euro 5
Weight-to-power ratio 2.9 kg/Hp, 344.6 Hp/tonne
Weight-to-torque ratio 3 kg/Nm, 332.3 Nm/tonne
Engine specs
Power 560 Hp @ 8000 rpm.
Power per litre 107.6 Hp/l
Torque 540 Nm @ 6500 rpm.
398.28 lb.-ft. @ 6500 rpm.
Engine Model/Code CEH
Engine displacement 5204 cm3
317.57 cu. in.
Number of cylinders 10
Engine configuration V-engine
Cylinder Bore 84.5 mm
3.33 in.
Piston Stroke 92.8 mm
3.65 in.
Compression ratio 12.5:1
Number of valves per cylinder 4
Fuel injection system Direct injection
Engine aspiration Naturally aspirated engine
Engine oil capacity 8.3 l
8.77 US qt | 7.3 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 21 l
22.19 US qt | 18.48 UK qt

Space, Volume and weights
Kerb Weight 1625 kg
3582.51 lbs.
Max. weight 1800 kg
3968.32 lbs.
Max load 175 kg
385.81 lbs.
Trunk (boot) space – minimum 110 l
3.88 cu. ft.
Fuel tank capacity 80 l
21.13 US gal | 17.6 UK gal
Dimensions
Length 4345 mm
171.06 in.
Width 1900 mm
74.8 in.
Height 1184 mm
46.61 in.
Wheelbase 2560 mm
100.79 in.
Front track 1632 mm
64.25 in.
Rear (Back) track 1597 mm
62.87 in.
Drag coefficient (Cd) 0.36
Minimum turning circle (turning diameter) 11.5 m
37.73 ft.
Drivetrain, brakes and suspension specs
Drive wheel All wheel drive (4×4)
Number of gears and type of gearbox 6 gears, manual transmission
Front brakes Ventilated discs
Rear brakes Ventilated discs
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Tires size 235/35 R19; 295/30 R19
Wheel rims size 8.5J x 19; 11J x 19
