Specifications: Lamborghini Gallardo Spyder 5.0 V10 (520 Hp) AWD E-Gear 2005, 2006, 2007, 2008

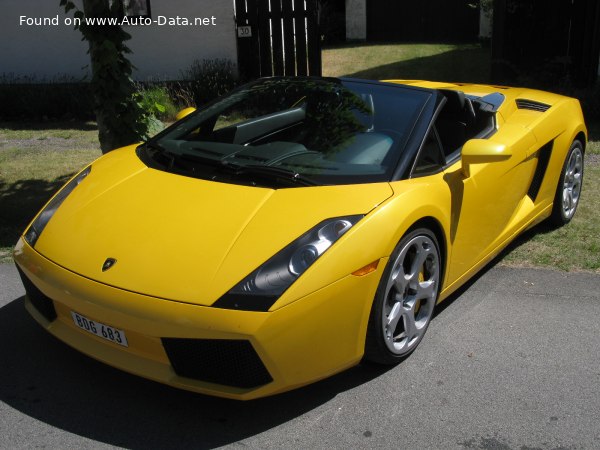

2005 Lamborghini Gallardo Spyder - Photo 1

Lamborghini Gallardo Spyder 5.0 V10 (520 Hp) AWD E-Gear – Full specifications
General information
Brand Lamborghini
Model Gallardo
Generation Gallardo Spyder
Modification (Engine) 5.0 V10 (520 Hp) AWD E-Gear
Start of production 2005 year
End of production 2008 year
Powertrain Architecture Internal Combustion engine
Body type Roadster
Seats 2
Doors 2
Performance specs
Fuel consumption (economy) – urban 24.8 l/100 km
9.48 US mpg
11.39 UK mpg
4.03 km/l
Fuel consumption (economy) – extra urban 12.4 l/100 km
18.97 US mpg
22.78 UK mpg
8.06 km/l
Fuel consumption (economy) – combined 17 l/100 km
13.84 US mpg
16.62 UK mpg
5.88 km/l
CO2 emissions 400 g/km
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 4.3 sec
Acceleration 0 – 62 mph 4.3 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 4.1 sec
Maximum speed 314 km/h
195.11 mph
Emission standard Euro 4
Weight-to-power ratio 3 kg/Hp, 331.2 Hp/tonne
Weight-to-torque ratio 3.1 kg/Nm, 324.8 Nm/tonne
Engine specs
Power 520 Hp @ 8000 rpm.
Power per litre 104.8 Hp/l
Torque 510 Nm @ 4250 rpm.
376.16 lb.-ft. @ 4250 rpm.
Engine layout Middle, Longitudinal
Engine Model/Code 07L
Engine displacement 4961 cm3
302.74 cu. in.
Number of cylinders 10
Engine configuration V-engine
Cylinder Bore 82.5 mm
3.25 in.
Piston Stroke 92.8 mm
3.65 in.
Compression ratio 11:1
Number of valves per cylinder 4
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Valvetrain DOHC, VVT
Engine oil capacity 9.5 l
10.04 US qt | 8.36 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 21 l
22.19 US qt | 18.48 UK qt

Space, Volume and weights
Kerb Weight 1570 kg
3461.26 lbs.
Trunk (boot) space – minimum 110 l
3.88 cu. ft.
Fuel tank capacity 80 l
21.13 US gal | 17.6 UK gal
Dimensions
Length 4300 mm
169.29 in.
Width 1900 mm
74.8 in.
Height 1184 mm
46.61 in.
Wheelbase 2560 mm
100.79 in.
Front track 1622 mm
63.86 in.
Rear (Back) track 1592 mm
62.68 in.
Drag coefficient (Cd) 0.36
Minimum turning circle (turning diameter) 11.5 m
37.73 ft.
Drivetrain, brakes and suspension specs
Drive wheel All wheel drive (4×4)
Number of gears and type of gearbox 6 gears, automatic transmission E-Gear
Front suspension Double wishbone
Rear suspension Double wishbone
Front brakes Ventilated discs
Rear brakes Ventilated discs
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Tires size 235/35 R19; 295/30 R19
Wheel rims size 8.5J x 19; 11J x 19
