Specifications: Lamborghini LM002 5.2 (450 Hp) 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993

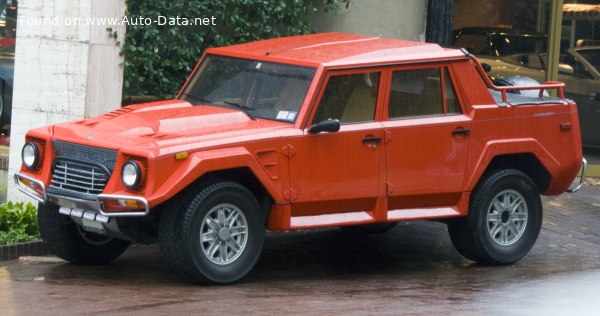

1986 Lamborghini LM002 - Photo 1

Lamborghini LM002 5.2 (450 Hp) – Full specifications
General information
Brand Lamborghini
Model LM002
Generation LM002
Modification (Engine) 5.2 (450 Hp)
Start of production 1986 year
End of production 1993 year
Powertrain Architecture Internal Combustion engine
Body type Pick-up
Seats 4
Doors 4
Performance specs
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 8.3 sec
Acceleration 0 – 62 mph 8.3 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 7.9 sec
Maximum speed 210 km/h
130.49 mph
Weight-to-power ratio 6 kg/Hp, 166.7 Hp/tonne
Weight-to-torque ratio 5.4 kg/Nm, 185.2 Nm/tonne
Engine specs
Power 450 Hp @ 6800 rpm.
Power per litre 87.1 Hp/l
Torque 500 Nm @ 4500 rpm.
368.78 lb.-ft. @ 4500 rpm.
Engine layout Front, Longitudinal
Engine Model/Code L510
Engine displacement 5167 cm3
315.31 cu. in.
Number of cylinders 12
Engine configuration V-engine
Cylinder Bore 85.5 mm
3.37 in.
Piston Stroke 75 mm
2.95 in.
Compression ratio 9.5:1
Number of valves per cylinder 4
Fuel injection system Carburettor
Engine aspiration Naturally aspirated engine
Valvetrain DOHC
Engine oil capacity 17.5 l
18.49 US qt | 15.4 UK qt
Coolant 17 l
17.96 US qt | 14.96 UK qt

Space, Volume and weights
Kerb Weight 2700 kg
5952.48 lbs.
Max. weight 3500 kg
7716.18 lbs.
Max load 800 kg
1763.7 lbs.
Fuel tank capacity 290 l
76.61 US gal | 63.79 UK gal
Dimensions
Length 4900 mm
192.91 in.
Width including mirrors 2000 mm
78.74 in.
Height 1850 mm
72.83 in.
Wheelbase 3000 mm
118.11 in.
Front track 1615 mm
63.58 in.
Rear (Back) track 1615 mm
63.58 in.
Ride height (ground clearance) 295 mm
11.61 in.
Minimum turning circle (turning diameter) 12.2 m
40.03 ft.
Approach angle 30°
Departure angle 45°
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the rear wheels permanently, and the front wheels are driven through an electrically or mechanically operated clutch if necessary.
Drive wheel All wheel drive (4×4)
Number of gears and type of gearbox 5 gears, manual transmission
Front suspension Double wishbone, Independent coil spring
Rear suspension Double wishbone, Independent coil spring
Front brakes Ventilated discs
Rear brakes Drum, 304.8×76.2 mm
Tires size 325/65 VR17
Wheel rims size 11J x 17
