Specifications: Lamborghini Miura P400 3.9 V12 (350 Hp) 1966, 1967, 1968, 1969

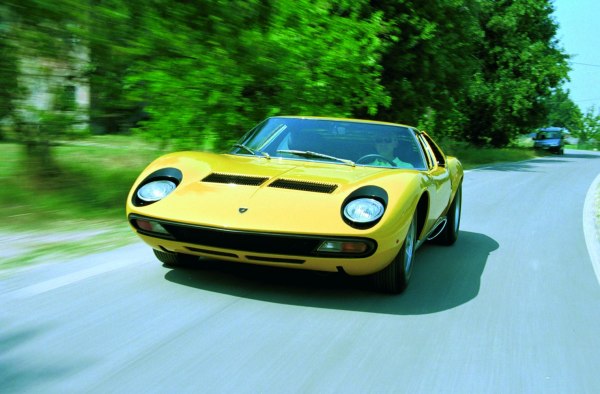

1966 Lamborghini Miura - Photo 1

Lamborghini Miura P400 3.9 V12 (350 Hp) – Full specifications
General information
Brand Lamborghini
Model Miura
Generation Miura
Modification (Engine) P400 3.9 V12 (350 Hp)
Start of production August, 1966 year
End of production August, 1969 year
Powertrain Architecture Internal Combustion engine
Body type Coupe
Seats 2
Doors 2
Performance specs
Fuel consumption (economy) – combined 17-19 l/100 km
13.84 – 12.38 US mpg
16.62 – 14.87 UK mpg
5.88 – 5.26 km/l
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 6.7 sec
Acceleration 0 – 62 mph 6.7 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 6.4 sec
Maximum speed 300 km/h
186.41 mph
Weight-to-power ratio 2.8 kg/Hp, 357.1 Hp/tonne
Weight-to-torque ratio 2.8 kg/Nm, 362.2 Nm/tonne
Engine specs
Power 350 Hp @ 7000 rpm.
Power per litre 89.1 Hp/l
Torque 355 Nm @ 5000 rpm.
261.83 lb.-ft. @ 5000 rpm.
Engine layout Rear axle, Longitudinal
Engine displacement 3929 cm3
239.76 cu. in.
Number of cylinders 12
Engine configuration V-engine
Cylinder Bore 82 mm
3.23 in.
Piston Stroke 62 mm
2.44 in.
Compression ratio 9.8:1
Number of valves per cylinder 2
Fuel injection system Carburettor
Engine aspiration Naturally aspirated engine
Valvetrain DOHC

Space, Volume and weights
Kerb Weight 980 kg
2160.53 lbs.
Trunk (boot) space – minimum 140 l
4.94 cu. ft.
Fuel tank capacity 90 l
23.78 US gal | 19.8 UK gal
Dimensions
Length 4360 mm
171.65 in.
Width 1760 mm
69.29 in.
Height 1055 mm
41.54 in.
Wheelbase 2500 mm
98.43 in.
Front track 1412 mm
55.59 in.
Rear (Back) track 1412 mm
55.59 in.
Minimum turning circle (turning diameter) 11.5 m
37.73 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the rear wheels of the vehicle.
Drive wheel Rear wheel drive
Number of gears and type of gearbox 5 gears, manual transmission
Front suspension Double wishbone, Transverse stabilizer
Rear suspension Double wishbone, Transverse stabilizer
Front brakes Disc
Rear brakes Disc
Steering type Steering rack and pinion
Wheel rims size 7J x 15
