Specifications: Lancia Delta I (831, facelift 1986) HF 4WD 2.0 (165 Hp) 1986, 1987, 1988

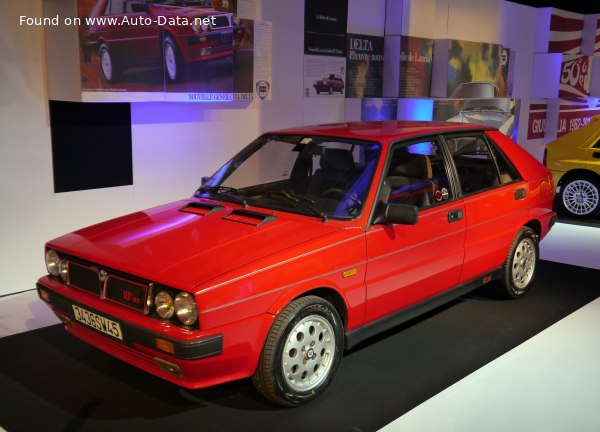

1986 Lancia Delta I (831, facelift 1986) - Photo 1

Lancia Delta I (831, facelift 1986) HF 4WD 2.0 (165 Hp) – Full specifications
General information
Brand Lancia
Model Delta
Generation Delta I (831, facelift 1986)
Modification (Engine) HF 4WD 2.0 (165 Hp)
Start of production 1986 year
End of production 1988 year
Powertrain Architecture Internal Combustion engine
Body type Hatchback
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – urban 10.8 l/100 km
21.8 US mpg
26.2 UK mpg
9.3 km/l
Fuel consumption (economy) – extra urban 7.8 l/100 km
30.2 US mpg
36.2 UK mpg
12.8 km/l
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 7.8 sec
Acceleration 0 – 62 mph 7.8 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 7.4 sec
Maximum speed 208 km/h
129.25 mph
Weight-to-power ratio 7.2 kg/Hp, 138.7 Hp/tonne
Weight-to-torque ratio 4.7 kg/Nm, 214.3 Nm/tonne
Engine specs
Power 165 Hp @ 5250 rpm.
Power per litre 82.7 Hp/l
Torque 255 Nm @ 2500 rpm.
188.08 lb.-ft. @ 2500 rpm.
Engine layout Front, Transverse
Engine Model/Code 831B5000
Engine displacement 1995 cm3
121.74 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 84 mm
3.31 in.
Piston Stroke 90 mm
3.54 in.
Compression ratio 8:1
Number of valves per cylinder 2
Fuel injection system Multi-port manifold injection
Engine aspiration Turbocharger, Intercooler
Valvetrain DOHC
Engine oil capacity 5.8 l
6.13 US qt | 5.1 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 6 l
6.34 US qt | 5.28 UK qt

Space, Volume and weights
Kerb Weight 1190 kg
2623.5 lbs.
Max. weight 1640 kg
3615.58 lbs.
Max load 450 kg
992.08 lbs.
Trunk (boot) space – minimum 200 l
7.06 cu. ft.
Trunk (boot) space – maximum 940 l
33.2 cu. ft.
Fuel tank capacity 57 l
15.06 US gal | 12.54 UK gal
Dimensions
Length 3895 mm
153.35 in.
Width 1620 mm
63.78 in.
Height 1380 mm
54.33 in.
Wheelbase 2475 mm
97.44 in.
Front track 1409 mm
55.47 in.
Rear (Back) track 1404 mm
55.28 in.
Front overhang 750 mm
29.53 in.
Rear overhang 670 mm
26.38 in.
Minimum turning circle (turning diameter) 10.4 m
34.12 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives permanently the four wheels of the vehicle.
Drive wheel All wheel drive (4×4)
Number of gears and type of gearbox 5 gears, manual transmission
Front suspension Independent, type McPherson with coil spring and anti-roll bar
Rear suspension McPherson, Transverse stabilizer
Front brakes Ventilated discs, 257 mm
Rear brakes Disc, 227 mm
Steering type Steering rack and pinion
Power steering Hydraulic Steering
Tires size 185/60 R14
Wheel rims size 5.5J x 14
