Specifications: Lancia Delta I (831, facelift 1986) HF Turbo 1.6 (140 Hp) 1986, 1987, 1988

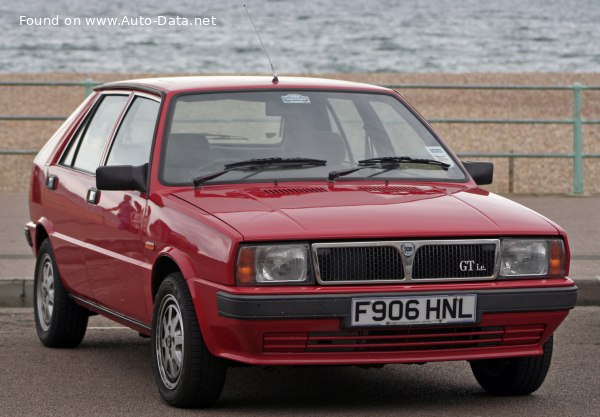

1986 Lancia Delta I (831, facelift 1986) - Photo 1

Lancia Delta I (831, facelift 1986) HF Turbo 1.6 (140 Hp) – Full specifications
General information
Brand Lancia
Model Delta
Generation Delta I (831, facelift 1986)
Modification (Engine) HF Turbo 1.6 (140 Hp)
Start of production May, 1986 year
End of production August, 1988 year
Powertrain Architecture Internal Combustion engine
Body type Hatchback
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – urban 10 l/100 km
23.5 US mpg
28.2 UK mpg
10 km/l
Fuel consumption (economy) – extra urban 6.5 l/100 km
36.2 US mpg
43.5 UK mpg
15.4 km/l
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 8.7 sec
Acceleration 0 – 62 mph 8.7 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 8.3 sec
Maximum speed 203 km/h
126.14 mph
Weight-to-power ratio 7.3 kg/Hp, 137.3 Hp/tonne
Weight-to-torque ratio 5.3 kg/Nm, 187.3 Nm/tonne
Engine specs
Power 140 Hp @ 5500 rpm.
Power per litre 88.3 Hp/l
Torque 191 Nm @ 3500 rpm.
140.87 lb.-ft. @ 3500 rpm.
Engine layout Front, Transverse
Engine Model/Code 831B3000
Engine displacement 1585 cm3
96.72 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 84 mm
3.31 in.
Piston Stroke 71.5 mm
2.81 in.
Compression ratio 8:1
Number of valves per cylinder 2
Fuel injection system Multi-port manifold injection
Engine aspiration Turbocharger, Intercooler
Valvetrain DOHC
Engine oil capacity 4.8 l
5.07 US qt | 4.22 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 6.5 l
6.87 US qt | 5.72 UK qt

Space, Volume and weights
Kerb Weight 1020 kg
2248.72 lbs.
Max. weight 1470 kg
3240.8 lbs.
Max load 450 kg
992.08 lbs.
Trunk (boot) space – minimum 260 l
9.18 cu. ft.
Trunk (boot) space – maximum 1000 l
35.31 cu. ft.
Fuel tank capacity 57 l
15.06 US gal | 12.54 UK gal
Dimensions
Length 3895 mm
153.35 in.
Width 1620 mm
63.78 in.
Height 1380 mm
54.33 in.
Wheelbase 2475 mm
97.44 in.
Front track 1402 mm
55.2 in.
Rear (Back) track 1400 mm
55.12 in.
Front overhang 750 mm
29.53 in.
Rear overhang 670 mm
26.38 in.
Drag coefficient (Cd) 0.40
Minimum turning circle (turning diameter) 10.5 m
34.45 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 5 gears, manual transmission
Front suspension Independent, type McPherson with coil spring and anti-roll bar
Rear suspension McPherson, Transverse stabilizer
Front brakes Ventilated discs, 257 mm
Rear brakes Disc, 227 mm
Steering type Steering rack and pinion
Tires size 165/65 R14
Wheel rims size 5.5J x 14
