Specifications: Lancia Delta II (836) 2.0 16V (139 Hp) 1993, 1994, 1995, 1996, 1997, 1998

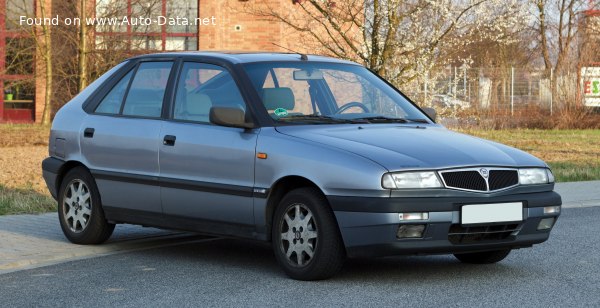

1993 Lancia Delta II (836) - Photo 1

Lancia Delta II (836) 2.0 16V (139 Hp) – Full specifications
General information
Brand Lancia
Model Delta
Generation Delta II (836)
Modification (Engine) 2.0 16V (139 Hp)
Start of production 1993 year
End of production 1998 year
Powertrain Architecture Internal Combustion engine
Body type Hatchback
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – combined 9.2 l/100 km
25.6 US mpg
30.7 UK mpg
10.9 km/l
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 9.6 sec
Acceleration 0 – 62 mph 9.6 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 9.1 sec
Maximum speed 206 km/h
128 mph
Weight-to-power ratio 8.9 kg/Hp, 112.8 Hp/tonne
Weight-to-torque ratio 6.8 kg/Nm, 146.1 Nm/tonne
Engine specs
Power 139 Hp @ 6000 rpm.
Power per litre 69.7 Hp/l
Torque 180 Nm @ 4500 rpm.
132.76 lb.-ft. @ 4500 rpm.
Engine layout Front, Transverse
Engine Model/Code 836 A3.000
Engine displacement 1995 cm3
121.74 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 84 mm
3.31 in.
Piston Stroke 90 mm
3.54 in.
Compression ratio 9.5:1
Number of valves per cylinder 4
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Valvetrain DOHC
Engine oil capacity 4.8 l
5.07 US qt | 4.22 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 6.9 l
7.29 US qt | 6.07 UK qt

Space, Volume and weights
Kerb Weight 1232 kg
2716.1 lbs.
Max. weight 1750 kg
3858.09 lbs.
Max load 518 kg
1141.99 lbs.
Trunk (boot) space – minimum 310 l
10.95 cu. ft.
Fuel tank capacity 55 l
14.53 US gal | 12.1 UK gal
Dimensions
Length 4011 mm
157.91 in.
Width 1703 mm
67.05 in.
Height 1430 mm
56.3 in.
Wheelbase 2540 mm
100 in.
Front track 1436 mm
56.54 in.
Rear (Back) track 1415 mm
55.71 in.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 5 gears, manual transmission
Front suspension Spring Strut
Rear suspension Coil spring
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Hydraulic Steering
Tires size 195/50 R15
