Specifications: Lancia Kappa (838) 2.0 LE (146 Hp) Automatic 1994, 1995, 1996

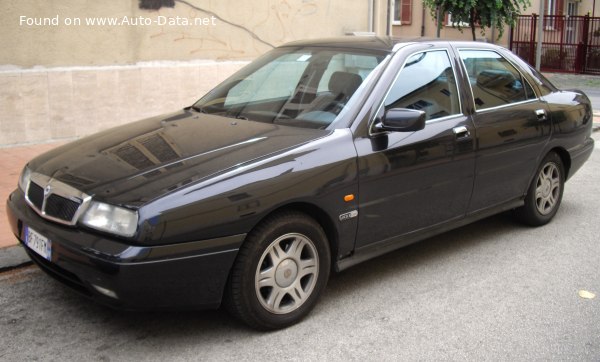

1994 Lancia Kappa (838) - Photo 1

Lancia Kappa (838) 2.0 LE (146 Hp) Automatic – Full specifications
General information
Brand Lancia
Model Kappa
Generation Kappa (838)
Modification (Engine) 2.0 LE (146 Hp) Automatic
Start of production August, 1994 year
End of production June, 1996 year
Powertrain Architecture Internal Combustion engine
Body type Sedan
Seats 5
Doors 4
Performance specs
Fuel consumption (economy) – combined 9.6 l/100 km
24.5 US mpg
29.4 UK mpg
10.4 km/l
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 9.8 sec
Acceleration 0 – 62 mph 9.8 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 9.3 sec
Maximum speed 205 km/h
127.38 mph
Weight-to-power ratio 9.9 kg/Hp, 100.7 Hp/tonne
Weight-to-torque ratio 7.8 kg/Nm, 127.6 Nm/tonne
Engine specs
Power 146 Hp @ 6000 rpm.
Power per litre 73.1 Hp/l
Torque 185 Nm @ 4500 rpm.
136.45 lb.-ft. @ 4500 rpm.
Engine layout Front, Transverse
Engine Model/Code 838 A1.000
Engine displacement 1998 cm3
121.93 cu. in.
Number of cylinders 5
Engine configuration Inline
Cylinder Bore 82 mm
3.23 in.
Piston Stroke 75.7 mm
2.98 in.
Compression ratio 10:1
Number of valves per cylinder 4
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Valvetrain DOHC
Engine oil capacity 5.4 l
5.71 US qt | 4.75 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 8.3 l
8.77 US qt | 7.3 UK qt

Space, Volume and weights
Kerb Weight 1450 kg
3196.7 lbs.
Max. weight 1990 kg
4387.2 lbs.
Max load 540 kg
1190.5 lbs.
Trunk (boot) space – minimum 565 l
19.95 cu. ft.
Fuel tank capacity 70 l
18.49 US gal | 15.4 UK gal
Dimensions
Length 4687 mm
184.53 in.
Width 1822 mm
71.73 in.
Height 1462 mm
57.56 in.
Wheelbase 2700 mm
106.3 in.
Front track 1547 mm
60.91 in.
Rear (Back) track 1535 mm
60.43 in.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 4 gears, automatic transmission
Front suspension Wishbone
Rear suspension Spring Strut
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Hydraulic Steering
Tires size 195/65 R15
Wheel rims size 15
