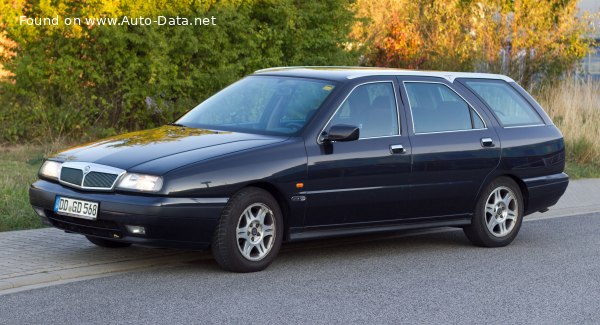

| General information | |
|---|---|
| Brand | Lancia |
| Model | Kappa |
| Generation | Kappa Station Wagon (838) |
| Modification (Engine) | 2.4 TD (124 Hp) |
| Start of production | 1996 year |
| End of production | May, 1998 year |
| Powertrain Architecture | Internal Combustion engine |
| Body type | Station wagon (estate) |
| Seats | 5 |
| Doors | 5 |
| Performance specs | |
| Fuel consumption (economy) – combined | 7.6 l/100 km 30.9 US mpg 37.2 UK mpg 13.2 km/l |
| Fuel Type | Diesel |
| Acceleration 0 – 100 km/h | 11.5 sec |
| Acceleration 0 – 62 mph | 11.5 sec |
| Acceleration 0 – 60 mph (Calculated by Auto-Data.net) | 10.9 sec |
| Maximum speed | 190 km/h 118.06 mph |
| Weight-to-power ratio | 12 kg/Hp, 83.5 Hp/tonne |
| Weight-to-torque ratio | 5.9 kg/Nm, 168.4 Nm/tonne |
| Engine specs | |
| Power | 124 Hp @ 4250 rpm. |
| Power per litre | 51.9 Hp/l |
| Torque | 250 Nm @ 2250 rpm. 184.39 lb.-ft. @ 2250 rpm. |
| Engine layout | Front, Transverse |
| Engine Model/Code | 838 A7.000 |
| Engine displacement | 2387 cm3 145.66 cu. in. |
| Number of cylinders | 5 |
| Engine configuration | Inline |
| Cylinder Bore | 82 mm 3.23 in. |
| Piston Stroke | 90.4 mm 3.56 in. |
| Compression ratio | 21:1 |
| Number of valves per cylinder | 2 |
| Fuel injection system | Precombustion chamber injection |
| Engine aspiration | Turbocharger |
| Valvetrain | OHC |
| Engine oil capacity | 5.4 l 5.71 US qt | 4.75 UK qt |
| Engine oil specification |  Log in to see. |
| Coolant | 8.3 l 8.77 US qt | 7.3 UK qt |
|
|
|
| Space, Volume and weights | |
| Kerb Weight | 1485 kg 3273.86 lbs. |
| Max. weight | 2000 kg 4409.25 lbs. |
| Max load | 515 kg 1135.38 lbs. |
| Trunk (boot) space – minimum | 505 l 17.83 cu. ft. |
| Trunk (boot) space – maximum | 1500 l 52.97 cu. ft. |
| Fuel tank capacity | 70 l 18.49 US gal | 15.4 UK gal |
| Dimensions | |
| Length | 4687 mm 184.53 in. |
| Width | 1826 mm 71.89 in. |
| Height | 1462 mm 57.56 in. |
| Wheelbase | 2700 mm 106.3 in. |
| Front track | 1546 mm 60.87 in. |
| Rear (Back) track | 1530 mm 60.24 in. |
| Drivetrain, brakes and suspension specs | |
| Drivetrain Architecture | The Internal combustion engine (ICE) drives the front wheels of the vehicle. |
| Drive wheel | Front wheel drive |
| Number of gears and type of gearbox | 5 gears, manual transmission |
| Front suspension | Wishbone |
| Rear suspension | Spring Strut |
| Front brakes | Ventilated discs |
| Rear brakes | Disc |
| Assisting systems | ABS (Anti-lock braking system) |
| Steering type | Steering rack and pinion |
| Power steering | Hydraulic Steering |
| Tires size | 195/60 R15 |
