Specifications: Lancia Lybra (839) 1.9 JTD (105 Hp) 1999, 2000

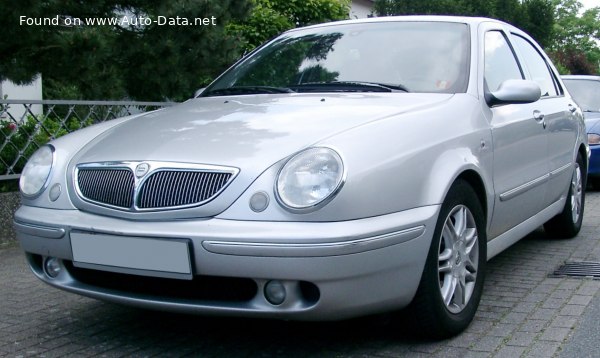

1999 Lancia Lybra (839) - Photo 1

Lancia Lybra (839) 1.9 JTD (105 Hp) – Full specifications
General information
Brand Lancia
Model Lybra
Generation Lybra (839)
Modification (Engine) 1.9 JTD (105 Hp)
Start of production July, 1999 year
End of production September, 2000 year
Powertrain Architecture Internal Combustion engine
Body type Sedan
Seats 5
Doors 4
Performance specs
Fuel consumption (economy) – urban 8.1 l/100 km
29 US mpg
34.9 UK mpg
12.3 km/l
Fuel consumption (economy) – extra urban 4.7 l/100 km
50 US mpg
60.1 UK mpg
21.3 km/l
Fuel consumption (economy) – combined 5.9 l/100 km
39.9 US mpg
47.9 UK mpg
16.9 km/l
Fuel Type Diesel
Acceleration 0 – 100 km/h 11.3 sec
Acceleration 0 – 62 mph 11.3 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 10.7 sec
Maximum speed 185 km/h
114.95 mph
Weight-to-power ratio 12.5 kg/Hp, 80.2 Hp/tonne
Weight-to-torque ratio 5.1 kg/Nm, 194.7 Nm/tonne
Engine specs
Power 105 Hp @ 4000 rpm.
Power per litre 55 Hp/l
Torque 255 Nm @ 2000 rpm.
188.08 lb.-ft. @ 2000 rpm.
Engine layout Front, Transverse
Engine Model/Code AR 32302
Engine displacement 1910 cm3
116.56 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 82 mm
3.23 in.
Piston Stroke 90.4 mm
3.56 in.
Compression ratio 18.5:1
Number of valves per cylinder 2
Fuel injection system Diesel Commonrail
Engine aspiration Turbocharger
Valvetrain OHC
Engine oil capacity 4.8 l
5.07 US qt | 4.22 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 7.3 l
7.71 US qt | 6.42 UK qt

Space, Volume and weights
Kerb Weight 1310 kg
2888.06 lbs.
Max. weight 1830 kg
4034.46 lbs.
Max load 520 kg
1146.4 lbs.
Trunk (boot) space – minimum 420 l
14.83 cu. ft.
Fuel tank capacity 60 l
15.85 US gal | 13.2 UK gal
Dimensions
Length 4466 mm
175.83 in.
Width 1743 mm
68.62 in.
Height 1462 mm
57.56 in.
Wheelbase 2593 mm
102.09 in.
Front track 1497 mm
58.94 in.
Rear (Back) track 1459 mm
57.44 in.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 5 gears, manual transmission
Front suspension Spring Strut
Rear suspension Coil spring
Front brakes Disc
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Hydraulic Steering
Tires size 195/65R15
