Specifications: Lancia Thema (LX) 3.6 V6 (286 Hp) Automatic 2011, 2012, 2013, 2014

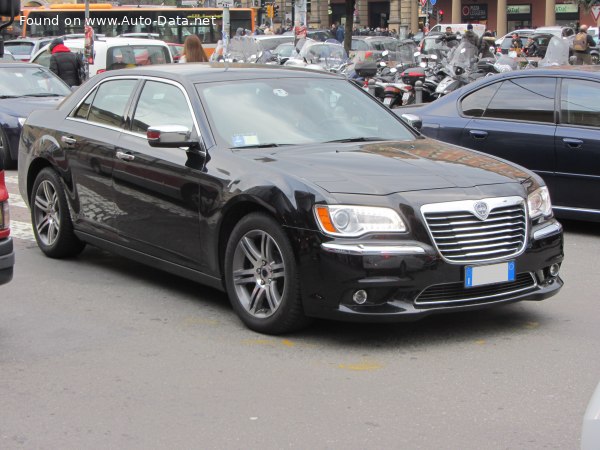

2011 Lancia Thema (LX) - Photo 1

Lancia Thema (LX) 3.6 V6 (286 Hp) Automatic – Full specifications
General information
Brand Lancia
Model Thema
Generation Thema (LX)
Modification (Engine) 3.6 V6 (286 Hp) Automatic
Start of production 2011 year
End of production 2014 year
Powertrain Architecture Internal Combustion engine
Body type Sedan
Seats 5
Doors 4
Performance specs
Fuel consumption (economy) – urban (NEDC) 13.9-14.3 l/100 km
16.9 – 16.4 US mpg
20.3 – 19.8 UK mpg
7.2 – 7 km/l
Fuel consumption (economy) – extra urban (NEDC) 6.7-7.1 l/100 km
35.1 – 33.1 US mpg
42.2 – 39.8 UK mpg
14.9 – 14.1 km/l
Fuel consumption (economy) – combined (NEDC) 9.4-9.7 l/100 km
25 – 24.2 US mpg
30.1 – 29.1 UK mpg
10.6 – 10.3 km/l
CO2 emissions (NEDC) 219-227 g/km
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 7.7 sec
Acceleration 0 – 62 mph 7.7 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 7.3 sec
Maximum speed 240 km/h
149.13 mph
Emission standard Euro 5
Weight-to-power ratio 6.2 kg/Hp, 161 Hp/tonne
Weight-to-torque ratio 5.2 kg/Nm, 191.4 Nm/tonne
Engine specs
Power 286 Hp @ 6350 rpm.
Power per litre 79.4 Hp/l
Torque 340 Nm @ 4650 rpm.
250.77 lb.-ft. @ 4650 rpm.
Engine layout Front, Longitudinal
Engine Model/Code Pentastar / ERB
Engine displacement 3604 cm3
219.93 cu. in.
Number of cylinders 6
Engine configuration V-engine
Cylinder Bore 96 mm
3.78 in.
Piston Stroke 83 mm
3.27 in.
Compression ratio 10.2:1
Number of valves per cylinder 4
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Valvetrain DOHC
Engine oil capacity 5.6 l
5.92 US qt | 4.93 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 9.5 l
10.04 US qt | 8.36 UK qt

Space, Volume and weights
Kerb Weight 1776 kg
3915.41 lbs.
Max. weight 2359 kg
5200.7 lbs.
Max load 583 kg
1285.29 lbs.
Trunk (boot) space – minimum 463 l
16.35 cu. ft.
Fuel tank capacity 72 l
19.02 US gal | 15.84 UK gal
Permitted trailer load with brakes (12%) 1724 kg
3800.77 lbs.
Permitted trailer load without brakes 450 kg
992.08 lbs.
Permitted towbar download 86 kg
189.6 lbs.
Dimensions
Length 5066 mm
199.45 in.
Width 1902 mm
74.88 in.
Height 1488 mm
58.58 in.
Wheelbase 3052 mm
120.16 in.
Front track 1623 mm
63.9 in.
Rear (Back) track 1640 mm
64.57 in.
Minimum turning circle (turning diameter) 11.5 m
37.73 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the rear wheels of the vehicle.
Drive wheel Rear wheel drive
Number of gears and type of gearbox 8 gears, automatic transmission
Front suspension Independent multi-link suspension
Rear suspension Independent multi-link suspension
Front brakes Ventilated discs, 345×28 mm
Rear brakes Ventilated discs, 320×22 mm
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 235/55 R18; 245/45 R20
Wheel rims size 7.5J x 18; 8.5J x 20
