Specifications: Lancia Ypsilon (843) 1.2 i 16V (80 Hp) 2003, 2004, 2005, 2006

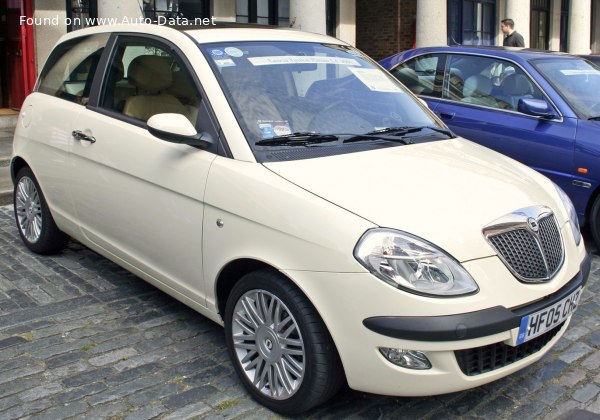

2003 Lancia Ypsilon (843) - Photo 1

Lancia Ypsilon (843) 1.2 i 16V (80 Hp) – Full specifications
General information
Brand Lancia
Model Ypsilon
Generation Ypsilon (843)
Modification (Engine) 1.2 i 16V (80 Hp)
Start of production 2003 year
End of production 2006 year
Powertrain Architecture Internal Combustion engine
Body type Hatchback
Seats 5
Doors 3
Performance specs
Fuel consumption (economy) – urban 7.7 l/100 km
30.5 US mpg
36.7 UK mpg
13 km/l
Fuel consumption (economy) – extra urban 5 l/100 km
47 US mpg
56.5 UK mpg
20 km/l
Fuel consumption (economy) – combined 6 l/100 km
39.2 US mpg
47.1 UK mpg
16.7 km/l
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 13.2 sec
Acceleration 0 – 62 mph 13.2 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 12.5 sec
Maximum speed 165 km/h
102.53 mph
Weight-to-power ratio 12.2 kg/Hp, 82.1 Hp/tonne
Weight-to-torque ratio 8.6 kg/Nm, 116.9 Nm/tonne
Engine specs
Power 80 Hp @ 5000 rpm.
Power per litre 64.4 Hp/l
Torque 114 Nm @ 4000 rpm.
84.08 lb.-ft. @ 4000 rpm.
Engine layout Front, Transverse
Engine Model/Code 188 A5.000
Engine displacement 1242 cm3
75.79 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 70.8 mm
2.79 in.
Piston Stroke 78.86 mm
3.1 in.
Compression ratio 10.6:1
Number of valves per cylinder 4
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Valvetrain OHC
Engine oil capacity 2.8 l
2.96 US qt | 2.46 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 4.8 l
5.07 US qt | 4.22 UK qt

Space, Volume and weights
Kerb Weight 975 kg
2149.51 lbs.
Trunk (boot) space – minimum 215 l
7.59 cu. ft.
Fuel tank capacity 47 l
12.42 US gal | 10.34 UK gal
Dimensions
Length 3778 mm
148.74 in.
Width 1705 mm
67.13 in.
Height 1530 mm
60.24 in.
Wheelbase 2388 mm
94.02 in.
Front track 1450 mm
57.09 in.
Rear (Back) track 1440 mm
56.69 in.
Minimum turning circle (turning diameter) 9.8 m
32.15 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 5 gears, manual transmission
Front suspension Spring Strut
Rear suspension Torsion
Front brakes Disc
Rear brakes Drum
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Tires size 185/65 R14
