Specifications: Lancia Ypsilon (843, facelift 2006) Sport Momo Design 1.3 Multijet 16V (105 Hp) 2007, 2008, 2009, 2010

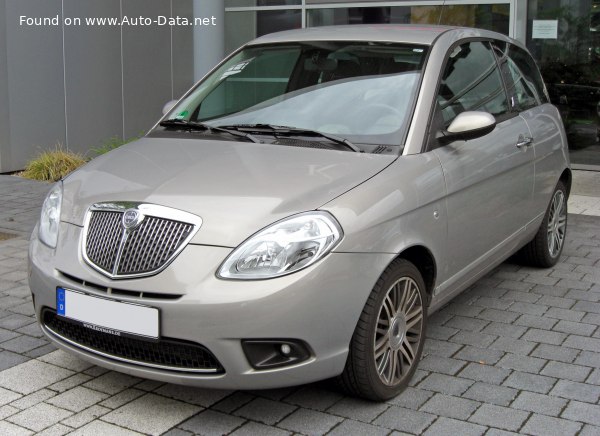

2006 Lancia Ypsilon (843, facelift 2006) - Photo 1

Lancia Ypsilon (843, facelift 2006) Sport Momo Design 1.3 Multijet 16V (105 Hp) – Full specifications
General information
Brand Lancia
Model Ypsilon
Generation Ypsilon (843, facelift 2006)
Modification (Engine) Sport Momo Design 1.3 Multijet 16V (105 Hp)
Start of production 2007 year
End of production February, 2010 year
Powertrain Architecture Internal Combustion engine
Body type Hatchback
Seats 4
Doors 3
Performance specs
Fuel consumption (economy) – urban (NEDC) 5.7 l/100 km
41.3 US mpg
49.6 UK mpg
17.5 km/l
Fuel consumption (economy) – extra urban (NEDC) 4.1 l/100 km
57.4 US mpg
68.9 UK mpg
24.4 km/l
Fuel consumption (economy) – combined (NEDC) 4.7 l/100 km
50 US mpg
60.1 UK mpg
21.3 km/l
CO2 emissions (NEDC) 123 g/km
Fuel Type Diesel
Acceleration 0 – 100 km/h 10.3 sec
Acceleration 0 – 62 mph 10.3 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 9.8 sec
Maximum speed 177 km/h
109.98 mph
Emission standard Euro 4
Weight-to-power ratio 10 kg/Hp, 100.5 Hp/tonne
Weight-to-torque ratio 5.2 kg/Nm, 191.4 Nm/tonne
Engine specs
Power 105 Hp @ 4000 rpm.
Power per litre 84.1 Hp/l
Torque 200 Nm @ 1750 rpm.
147.51 lb.-ft. @ 1750 rpm.
Engine layout Front, Transverse
Engine Model/Code 843A2000
Engine displacement 1248 cm3
76.16 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 69.6 mm
2.74 in.
Piston Stroke 82 mm
3.23 in.
Compression ratio 16.8:1
Number of valves per cylinder 4
Fuel injection system Diesel Commonrail
Engine aspiration Turbocharger, Intercooler
Valvetrain DOHC
Engine oil capacity 3.2 l
3.38 US qt | 2.82 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 6 l
6.34 US qt | 5.28 UK qt

Space, Volume and weights
Kerb Weight 1045 kg
2303.83 lbs.
Max. weight 1520 kg
3351.03 lbs.
Max load 475 kg
1047.2 lbs.
Trunk (boot) space – minimum 215 l
7.59 cu. ft.
Fuel tank capacity 47 l
12.42 US gal | 10.34 UK gal
Max. roof load 75 kg
165.35 lbs.
Permitted trailer load with brakes (12%) 900 kg
1984.16 lbs.
Permitted trailer load without brakes 400 kg
881.85 lbs.
Permitted towbar download 60 kg
132.28 lbs.
Dimensions
Length 3810 mm
150 in.
Width 1704 mm
67.09 in.
Height 1510 mm
59.45 in.
Wheelbase 2388 mm
94.02 in.
Front track 1450 mm
57.09 in.
Rear (Back) track 1440 mm
56.69 in.
Front overhang 819 mm
32.24 in.
Rear overhang 603 mm
23.74 in.
Minimum turning circle (turning diameter) 9.83 m
32.25 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 5 gears, manual transmission
Front suspension Independent, type McPherson with coil spring and anti-roll bar
Rear suspension Transverse stabilizer, Torsion
Front brakes Ventilated discs, 257×22 mm
Rear brakes Disc, 240 mm
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 195/45 R16
Wheel rims size 6.5J x 16
