Specifications: Land Rover Defender 130 (L663) 3.0 D250 (249 Hp) Mild Hybrid AWD Automatic 2022, 2023, 2024, 2025

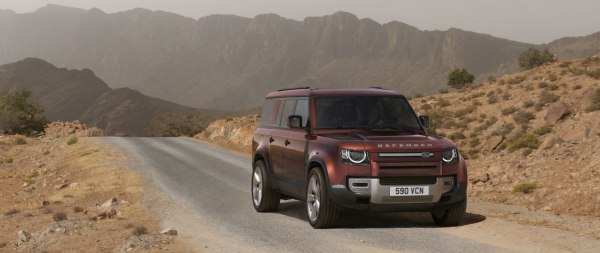

2023 Land Rover Defender 130 (L663) - Photo 1

Land Rover Defender 130 (L663) 3.0 D250 (249 Hp) Mild Hybrid AWD Automatic – Full specifications
General information
Brand Land Rover
Model Defender
Generation Defender 130 (L663)
Modification (Engine) 3.0 D250 (249 Hp) Mild Hybrid AWD Automatic
Start of production May, 2022 year
Powertrain Architecture MHEV (Mild Hybrid Electric Vehicle, power-assist hybrid, battery-assisted hybrid vehicles, BAHV)
Body type Off-road vehicle
Seats 5-8
Doors 5
Performance specs
Fuel consumption at Low speed (WLTP) 12.3-12.7 l/100 km
19.1 – 18.5 US mpg
23 – 22.2 UK mpg
8.1 – 7.9 km/l
Fuel consumption at Medium speed (WLTP) 8.7-9 l/100 km
27 – 26.1 US mpg
32.5 – 31.4 UK mpg
11.5 – 11.1 km/l
Fuel consumption at high speed (WLTP) 7.1-7.7 l/100 km
33.1 – 30.5 US mpg
39.8 – 36.7 UK mpg
14.1 – 13 km/l
Fuel consumption at very high speed (WLTP) 8.9-9.6 l/100 km
26.4 – 24.5 US mpg
31.7 – 29.4 UK mpg
11.2 – 10.4 km/l
Combined fuel consumption (WLTP) 8.8-9.3 l/100 km
26.7 – 25.3 US mpg
32.1 – 30.4 UK mpg
11.4 – 10.8 km/l
CO2 emissions (WLTP) 231-245 g/km
Fuel Type Diesel
Acceleration 0 – 100 km/h 8.9 sec
Acceleration 0 – 62 mph 8.9 sec
Acceleration 0 – 60 mph 8.4 sec
Maximum speed 188 km/h
116.82 mph
Weight-to-power ratio 10.2 kg/Hp, 97.6 Hp/tonne
Weight-to-torque ratio 4.3 kg/Nm, 235.3 Nm/tonne
Electric cars and hybrids specs
Battery technology Lithium-ion (Li-Ion)
Internal combustion engine specs
Power 249 Hp @ 4000 rpm.
Power per litre 83.1 Hp/l
Torque 600 Nm @ 1250-2250 rpm.
442.54 lb.-ft. @ 1250-2250 rpm.
Engine layout Front, Longitudinal
Engine Model/Code Ingenium / DT306
Engine displacement 2997 cm3
182.89 cu. in.
Number of cylinders 6
Engine configuration Inline
Cylinder Bore 83 mm
3.27 in.
Piston Stroke 92.3 mm
3.63 in.
Compression ratio 15.5:1
Number of valves per cylinder 4
Fuel injection system Diesel Commonrail
Engine aspiration Turbocharger, Intercooler
Valvetrain DOHC
Engine oil capacity 8.8 l
9.3 US qt | 7.74 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 11.6 l
12.26 US qt | 10.21 UK qt
Engine systems Start & Stop System
Particulate filter

Space, Volume and weights
Kerb Weight 2550-2589 kg
5621.79 – 5707.77 lbs.
Max. weight 3380 kg
7451.62 lbs.
Max load 791-830 kg
1743.86 – 1829.84 lbs.
Trunk (boot) space – minimum 290 l
10.24 cu. ft.
Trunk (boot) space – maximum 2078 l
73.38 cu. ft.
Fuel tank capacity 89 l
23.51 US gal | 19.58 UK gal
AdBlue tank 20.7 l
5.47 US gal | 4.55 UK gal
Max. roof load 168 kg
370.38 lbs.
Permitted trailer load with brakes (12%) 3000 kg
6613.87 lbs.
Permitted trailer load without brakes 750 kg
1653.47 lbs.
Permitted towbar download 120 kg
264.55 lbs.
Dimensions
Length 5358 mm
210.94 in.
Width with mirrors folded 2008 mm
79.06 in.
Width including mirrors 2105 mm
82.87 in.
Height 1970 mm
77.56 in.
Front track 1706 mm
67.17 in.
Rear (Back) track 1702 mm
67.01 in.
Ride height (ground clearance) 219-290 mm
8.62 – 11.42 in.
Minimum turning circle (turning diameter) 13.1 m
42.98 ft.
Approach angle 30.1-37.5°
Departure angle 24.5-28.5°
Ramp-over (brakeover) angle 22-27.8°
Wading depth 900 mm
35.43 in.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) and the electric motor permanently drive the four wheels of the car with the ability to work only in mixed mode.
Drive wheel All wheel drive (4×4)
Number of gears and type of gearbox 8 gears, automatic transmission
Front suspension Double wishbone
Rear suspension Independent multi-link suspension
Front brakes Ventilated discs, 363 mm
Rear brakes Ventilated discs, 350 mm
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
