Specifications: Land Rover Discovery V 3.0 Si6 (340 Hp) 4WD Automatic 2017, 2018

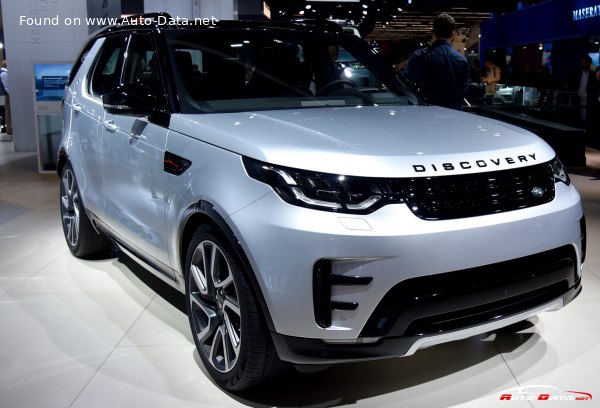

2017 Land Rover Discovery V - Photo 1

Land Rover Discovery V 3.0 Si6 (340 Hp) 4WD Automatic – Full specifications
General information
Brand Land Rover
Model Discovery
Generation Discovery V
Modification (Engine) 3.0 Si6 (340 Hp) 4WD Automatic
Start of production 2017 year
End of production 2018 year
Powertrain Architecture Internal Combustion engine
Body type SUV
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – urban 14.2 l/100 km
16.6 US mpg
19.9 UK mpg
7 km/l
Fuel consumption (economy) – extra urban 9.3 l/100 km
25.3 US mpg
30.4 UK mpg
10.8 km/l
Fuel consumption (economy) – combined 10.9 l/100 km
21.6 US mpg
25.9 UK mpg
9.2 km/l
CO2 emissions 254 g/km
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 7.1 sec
Acceleration 0 – 62 mph 7.1 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 6.7 sec
Maximum speed 215 km/h
133.59 mph
Emission standard Euro 5
Weight-to-power ratio 6.3 kg/Hp, 158.3 Hp/tonne
Weight-to-torque ratio 4.8 kg/Nm, 209.5 Nm/tonne
Engine specs
Power 340 Hp @ 6500 rpm.
Power per litre 113.5 Hp/l
Torque 450 Nm @ 3500-5000 rpm.
331.9 lb.-ft. @ 3500-5000 rpm.
Engine layout Front, Longitudinal
Engine Model/Code AJ126
Engine displacement 2995 cm3
182.77 cu. in.
Number of cylinders 6
Engine configuration V-engine
Cylinder Bore 84.5 mm
3.33 in.
Piston Stroke 89 mm
3.5 in.
Compression ratio 10.5:1
Number of valves per cylinder 4
Fuel injection system Direct injection
Engine aspiration Supercharger, Intercooler
Engine oil capacity 8 l
8.45 US qt | 7.04 UK qt
Engine oil specification Log in to see.Log in to see.
Engine systems Start & Stop System

Space, Volume and weights
Kerb Weight 2148 kg
4735.53 lbs.
Trunk (boot) space – minimum 1231 l
43.47 cu. ft.
Trunk (boot) space – maximum 2500 l
88.29 cu. ft.
Fuel tank capacity 89 l
23.51 US gal | 19.58 UK gal
Permitted trailer load with brakes (12%) 3500 kg
7716.18 lbs.
Permitted trailer load without brakes 750 kg
1653.47 lbs.
Dimensions
Length 4970 mm
195.67 in.
Width with mirrors folded 2073 mm
81.61 in.
Width including mirrors 2220 mm
87.4 in.
Height 1846 mm
72.68 in.
Wheelbase 2923 mm
115.08 in.
Front track 1692 mm
66.61 in.
Rear (Back) track 1686 mm
66.38 in.
Front overhang 872 mm
34.33 in.
Rear overhang 1175 mm
46.26 in.
Ride height (ground clearance) 220 mm
8.66 in.
Drag coefficient (Cd) 0.36
Minimum turning circle (turning diameter) 12.7 m
41.67 ft.
Approach angle 28.5°
Departure angle 27.0°
Ramp-over (brakeover) angle 22.5°
Climb angle 45°
Wading depth 850 mm
33.46 in.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives permanently the four wheels of the vehicle.
Drive wheel All wheel drive (4×4)
Number of gears and type of gearbox 8 gears, automatic transmission
Front suspension Double wishbone, Independent coil spring
Rear suspension Independent multi-link suspension
Front brakes Ventilated discs, 360 mm
Rear brakes Ventilated discs, 350 mm
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 235/65 R19; 255/60 R19; 255/55 R20; 275/45 R21; 285/40 R22
Wheel rims size 7.5J x 19; 8.5J x 20; 9.5J x 21; 9.5J x 22
