Specifications: Land Rover Range Rover Sport I 4.2 V8 Supercharged (390 Hp) AWD Automatic 2005, 2006, 2007, 2008, 2009

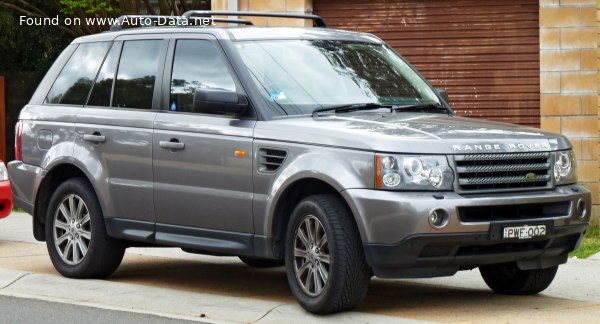

2005 Land Rover Range Rover Sport I - Photo 1

Land Rover Range Rover Sport I 4.2 V8 Supercharged (390 Hp) AWD Automatic – Full specifications
General information
Brand Land Rover
Model Range Rover Sport
Generation Range Rover Sport I
Modification (Engine) 4.2 V8 Supercharged (390 Hp) AWD Automatic
Start of production 2005 year
End of production 2009 year
Powertrain Architecture Internal Combustion engine
Body type SUV
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – urban 22.8 l/100 km
10.3 US mpg
12.4 UK mpg
4.4 km/l
Fuel consumption (economy) – extra urban 11.9 l/100 km
19.8 US mpg
23.7 UK mpg
8.4 km/l
Fuel consumption (economy) – combined 15.9 l/100 km
14.8 US mpg
17.8 UK mpg
6.3 km/l
CO2 emissions 374 g/km
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 7.6 sec
Acceleration 0 – 62 mph 7.6 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 7.2 sec
Maximum speed 225 km/h
139.81 mph
Emission standard Euro 4
Weight-to-power ratio 6.6 kg/Hp, 151.6 Hp/tonne
Weight-to-torque ratio 4.7 kg/Nm, 213.8 Nm/tonne
Engine specs
Power 390 Hp @ 5750 rpm.
Power per litre 92.9 Hp/l
Torque 550 Nm @ 3500 rpm.
405.66 lb.-ft. @ 3500 rpm.
Engine layout Front, Longitudinal
Engine Model/Code AJ33S
Engine displacement 4197 cm3
256.12 cu. in.
Number of cylinders 8
Engine configuration V-engine
Cylinder Bore 86 mm
3.39 in.
Piston Stroke 90.3 mm
3.56 in.
Compression ratio 9.1:1
Number of valves per cylinder 4
Fuel injection system Multi-port manifold injection
Engine aspiration Supercharger, Intercooler
Valvetrain DOHC
Engine oil capacity 7.5 l
7.93 US qt | 6.6 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 12 l
12.68 US qt | 10.56 UK qt

Space, Volume and weights
Kerb Weight 2572 kg
5670.29 lbs.
Max. weight 3125 kg
6889.45 lbs.
Max load 553 kg
1219.16 lbs.
Trunk (boot) space – minimum 958 l
33.83 cu. ft.
Trunk (boot) space – maximum 2013 l
71.09 cu. ft.
Fuel tank capacity 88.1 l
23.27 US gal | 19.38 UK gal
Permitted trailer load with brakes (12%) 3500 kg
7716.18 lbs.
Permitted trailer load without brakes 750 kg
1653.47 lbs.
Dimensions
Length 4788 mm
188.5 in.
Width with mirrors folded 1983 mm
78.07 in.
Width including mirrors 2170 mm
85.43 in.
Height 1762-1812 mm
69.37 – 71.34 in.
Wheelbase 2745 mm
108.07 in.
Front track 1605 mm
63.19 in.
Rear (Back) track 1612 mm
63.46 in.
Ride height (ground clearance) 172-227 mm
6.77 – 8.94 in.
Minimum turning circle (turning diameter) 11.9 m
39.04 ft.
Approach angle 30.2-34°
Departure angle 26-29°
Ramp-over (brakeover) angle 20-25°
Wading depth 700 mm
27.56 in.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives permanently the four wheels of the vehicle.
Drive wheel All wheel drive (4×4)
Number of gears and type of gearbox 6 gears, automatic transmission
Front suspension Air suspension
Rear suspension Air suspension
Front brakes Ventilated discs, 360 mm
Rear brakes Ventilated discs, 350 mm
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Hydraulic Steering
Tires size 275/40 R20
Wheel rims size 9.5J x 20
