Specifications: Lexus IS III (XE30, facelift 2016) 200t (245 Hp) Direct Shift 2016, 2017

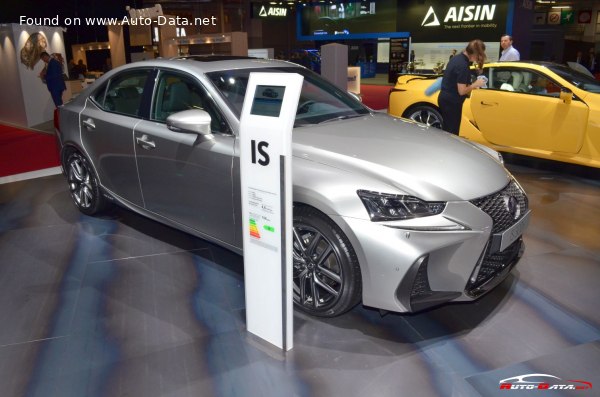

2017 Lexus IS III (XE30, facelift 2016) - Photo 1

Lexus IS III (XE30, facelift 2016) 200t (245 Hp) Direct Shift – Full specifications
General information
Brand Lexus
Model IS
Generation IS III (XE30, facelift 2016)
Modification (Engine) 200t (245 Hp) Direct Shift
Start of production October, 2016 year
End of production October, 2017 year
Powertrain Architecture Internal Combustion engine
Body type Sedan
Seats 5
Doors 4
Performance specs
Fuel consumption (economy) – urban (NEDC) 10.8-11.3 l/100 km
21.8 – 20.8 US mpg
26.2 – 25 UK mpg
9.3 – 8.8 km/l
Fuel consumption (economy) – extra urban (NEDC) 5.9-6.4 l/100 km
39.9 – 36.8 US mpg
47.9 – 44.1 UK mpg
16.9 – 15.6 km/l
Fuel consumption (economy) – combined (NEDC) 7.7-8.2 l/100 km
30.5 – 28.7 US mpg
36.7 – 34.4 UK mpg
13 – 12.2 km/l
CO2 emissions (NEDC) 177-191 g/km
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 7 sec
Acceleration 0 – 62 mph 7 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 6.7 sec
Maximum speed 230 km/h
142.92 mph
Emission standard Euro 6
Weight-to-power ratio 6.2 kg/Hp, 161.7 Hp/tonne
Weight-to-torque ratio 4.3 kg/Nm, 231 Nm/tonne
Engine specs
Power 245 Hp @ 5800 rpm.
Power per litre 122.6 Hp/l
Torque 350 Nm @ 1650-4400 rpm.
258.15 lb.-ft. @ 1650-4400 rpm.
Engine layout Front, Longitudinal
Engine Model/Code 8AR-FTS
Engine displacement 1998 cm3
121.93 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 86 mm
3.39 in.
Piston Stroke 86 mm
3.39 in.
Compression ratio 10:1
Number of valves per cylinder 4
Fuel injection system Direct injection and Multi-port manifold injection
Engine aspiration Twin-scroll turbo, Intercooler
Valvetrain DOHC, Dual VVT-iW
Engine oil capacity 4.6 l
4.86 US qt | 4.05 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 7.9 l
8.35 US qt | 6.95 UK qt
Engine systems Start & Stop System

Space, Volume and weights
Kerb Weight 1515-1660 kg
3340 – 3659.67 lbs.
Max. weight 1905-2125 kg
4199.81 – 4684.82 lbs.
Max load 390-465 kg
859.8 – 1025.15 lbs.
Trunk (boot) space – minimum 480 l
16.95 cu. ft.
Fuel tank capacity 66 l
17.44 US gal | 14.52 UK gal
Permitted trailer load with brakes (12%) 1500 kg
3306.93 lbs.
Permitted trailer load without brakes 750 kg
1653.47 lbs.
Dimensions
Length 4680 mm
184.25 in.
Width 1810 mm
71.26 in.
Width including mirrors 2027 mm
79.8 in.
Height 1430 mm
56.3 in.
Wheelbase 2800 mm
110.24 in.
Front track 1535 mm
60.43 in.
Rear (Back) track 1540-1550 mm
60.63 – 61.02 in.
Front overhang 845 mm
33.27 in.
Rear overhang 1035 mm
40.75 in.
Ride height (ground clearance) 135 mm
5.31 in.
Drag coefficient (Cd) 0.28
Minimum turning circle (turning diameter) 10.4 m
34.12 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the rear wheels of the vehicle.
Drive wheel Rear wheel drive
Number of gears and type of gearbox 8 gears, automatic transmission Direct Shift
Front suspension Coil spring, Double wishbone, Transverse stabilizer
Rear suspension Independent multi-link spring suspension with stabilizer
Front brakes Ventilated discs
Rear brakes Ventilated discs
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size Front wheel tires: 225/45 R17; 225/40 R18
Rear wheel tires: 225/45 R17; 255/35 R18
Wheel rims size Front wheel rims: 7.5J x 17; 8J x 18
Rear wheel rims: 7.5J x 17; 8.5J x 18
