Specifications: Lexus IS III (XE30, facelift 2020) 300h (223 Hp) Hybrid e-CVT 2020, 2021, 2022, 2023, 2024, 2025

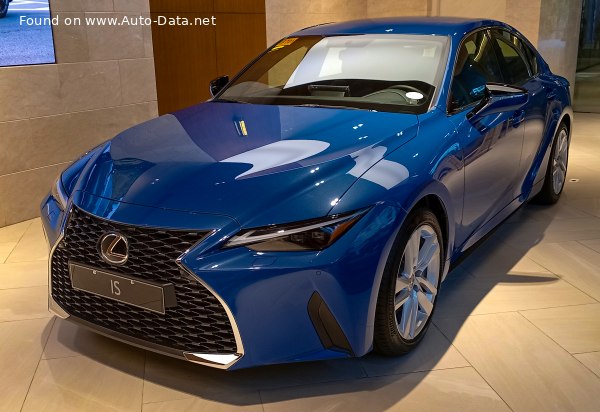

2021 Lexus IS III (XE30, facelift 2020) - Photo 1

Lexus IS III (XE30, facelift 2020) 300h (223 Hp) Hybrid e-CVT – Full specifications
General information
Brand Lexus
Model IS
Generation IS III (XE30, facelift 2020)
Modification (Engine) 300h (223 Hp) Hybrid e-CVT
Start of production November, 2020 year
Powertrain Architecture FHEV (Full Hybrid Electric Vehicle)
Body type Sedan
Seats 5
Doors 4
Performance specs
Fuel consumption (economy) – combined 5.1-5.2 l/100 km
46.1 – 45.2 US mpg
55.4 – 54.3 UK mpg
19.6 – 19.2 km/l
CO2 emissions 122 g/km
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 8.7 sec
Acceleration 0 – 62 mph 8.7 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 8.3 sec
Maximum speed 200 km/h, Electronically limited
124.27 mph
Weight-to-power ratio 7.6 kg/Hp, 131.2 Hp/tonne
Weight-to-torque ratio 7.7 kg/Nm, 130 Nm/tonne
Electric cars and hybrids specs
Battery voltage 230.4 V
Battery technology Nickel-metal hydride (NiMH)
Battery location Under the trunk
Electric motor 1
Electric motor power 143 Hp
Electric motor Torque 300 Nm

221.27 lb.-ft.
Electric motor model/code 1KM
Electric motor location Integrated into the transmission
Electric motor type Synchronous
System power 223 Hp
Internal combustion engine specs
Power 181 Hp @ 6000 rpm.
Power per litre 72.6 Hp/l
Torque 221 Nm @ 4200-5400 rpm.
163 lb.-ft. @ 4200-5400 rpm.
Engine layout Front, Longitudinal
Engine Model/Code 2AR-FSE
Engine displacement 2493 cm3
152.13 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 90 mm
3.54 in.
Piston Stroke 98 mm
3.86 in.
Compression ratio 13:1
Number of valves per cylinder 4
Fuel injection system Direct injection and Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Valvetrain DOHC, Dual VVT-i
Engine oil capacity 4.5 l
4.76 US qt | 3.96 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 8.1 l
8.56 US qt | 7.13 UK qt
Engine systems Start & Stop System

Space, Volume and weights
Kerb Weight 1700-1740 kg
3747.86 – 3836.04 lbs.
Max. weight 2140-2160 kg
4717.89 – 4761.98 lbs.
Max load 420-440 kg
925.94 – 970.03 lbs.
Trunk (boot) space – minimum 450 l
15.89 cu. ft.
Fuel tank capacity 66 l
17.44 US gal | 14.52 UK gal
Dimensions
Length 4710 mm
185.43 in.
Width 1840 mm
72.44 in.
Height 1435 mm
56.5 in.
Wheelbase 2800 mm
110.24 in.
Front track 1580 mm
62.2 in.
Rear (Back) track 1575-1605 mm
62.01 – 63.19 in.
Front overhang 875 mm
34.45 in.
Rear overhang 1035 mm
40.75 in.
Ride height (ground clearance) 140 mm
5.51 in.
Minimum turning circle (turning diameter) 10.4 m
34.12 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) and electric motor drive the rear wheels of the car with the ability to work in full electric or mixed mode.
Drive wheel Rear wheel drive
Number of gears and type of gearbox automatic transmission e-CVT
Front suspension Coil spring, Double wishbone, Transverse stabilizer
Rear suspension Independent multi-link spring suspension with stabilizer
Front brakes Ventilated discs, 334×30 mm
Rear brakes Ventilated discs, 297×18 mm
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size Front wheel tires: 235/45 R18; 235/40 R19
Rear wheel tires: 235/45 R18; 235/40 R19; 265/35 R19
Wheel rims size Front wheel rims: 8.5J x 18; 8.5J x 19
Rear wheel rims: 8.5J x 18; 8.5J x 19; 9.5J x 19
