Specifications: Lexus LS IV (facelift 2009) 460 V8 (367 Hp) AWD Super ECT 2009, 2010, 2011, 2012

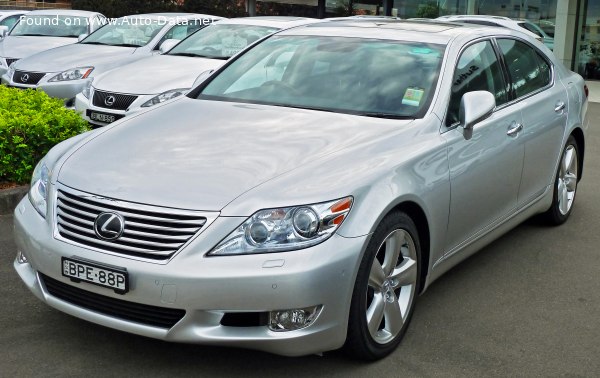

2009 Lexus LS IV (facelift 2009) - Photo 1

Lexus LS IV (facelift 2009) 460 V8 (367 Hp) AWD Super ECT – Full specifications
General information
Brand Lexus
Model LS
Generation LS IV (facelift 2009)
Modification (Engine) 460 V8 (367 Hp) AWD Super ECT
Start of production October, 2009 year
End of production 2012 year
Powertrain Architecture Internal Combustion engine
Body type Sedan
Seats 5
Doors 4
Performance specs
Fuel consumption (economy) – urban (NEDC) 17.2 l/100 km
13.7 US mpg
16.4 UK mpg
5.8 km/l
Fuel consumption (economy) – extra urban (NEDC) 8.4 l/100 km
28 US mpg
33.6 UK mpg
11.9 km/l
Fuel consumption (economy) – combined (NEDC) 11.6 l/100 km
20.3 US mpg
24.4 UK mpg
8.6 km/l
CO2 emissions (NEDC) 274 g/km
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 6.3 sec
Acceleration 0 – 62 mph 6.3 sec
Acceleration 0 – 60 mph 5.9 sec
Maximum speed 250 km/h, Electronically limited
155.34 mph
Emission standard Euro 5
Weight-to-power ratio 5.7 kg/Hp, 176 Hp/tonne
Weight-to-torque ratio 4.5 kg/Nm, 223.5 Nm/tonne
Engine specs
Power 367 Hp @ 6400 rpm.
Power per litre 79.6 Hp/l
Torque 466 Nm @ 4100 rpm.
343.7 lb.-ft. @ 4100 rpm.
Maximum engine speed 6600 rpm.
Engine layout Front, Longitudinal
Engine Model/Code 1UR-FSE
Engine displacement 4608 cm3
281.2 cu. in.
Number of cylinders 8
Engine configuration V-engine
Cylinder Bore 94 mm
3.7 in.
Piston Stroke 83 mm
3.27 in.
Compression ratio 11.8:1
Number of valves per cylinder 4
Fuel injection system Direct injection and Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Valvetrain DOHC, Dual VVT-iE
Engine oil capacity 9 l
9.51 US qt | 7.92 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 11.1 l
11.73 US qt | 9.77 UK qt

Space, Volume and weights
Kerb Weight 2085-2200 kg
4596.64 – 4850.17 lbs.
Max. weight 2640 kg
5820.2 lbs.
Max load 440-555 kg
970.03 – 1223.57 lbs.
Trunk (boot) space – minimum 560 l
19.78 cu. ft.
Fuel tank capacity 84 l
22.19 US gal | 18.48 UK gal
Dimensions
Length 5060 mm
199.21 in.
Width 1875 mm
73.82 in.
Height 1455-1465 mm
57.28 – 57.68 in.
Wheelbase 2970 mm
116.93 in.
Front track 1610-1615 mm
63.39 – 63.58 in.
Rear (Back) track 1615 mm
63.58 in.
Front overhang 915 mm
36.02 in.
Rear overhang 1175 mm
46.26 in.
Ride height (ground clearance) 145 mm
5.71 in.
Drag coefficient (Cd) 0.27
Minimum turning circle (turning diameter) 11.4 m
37.4 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives permanently the four wheels of the vehicle.
Drive wheel All wheel drive (4×4)
Number of gears and type of gearbox 8 gears, automatic transmission Super ECT
Front suspension Independent multi-link suspension, Transverse stabilizer, Air Suspension – Optional
Rear suspension Independent multi-link suspension, Transverse stabilizer, Air Suspension – Optional
Front brakes Ventilated discs, 357×34 mm
Rear brakes Ventilated discs, 335×22 mm
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 235/50 R18; 245/45 R19
Wheel rims size 7.5J x 18; 8J x 19
