Specifications: Lexus LS IV Long (facelift 2009) 600h L V8 (445 Hp) Hybrid AWD e-CVT 2009, 2010, 2011, 2012

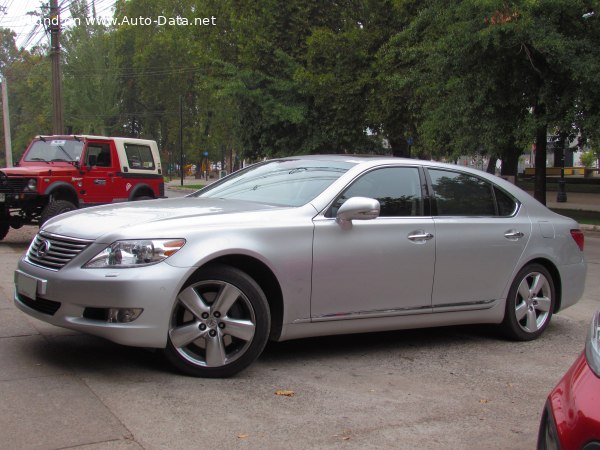

2009 Lexus LS IV Long (facelift 2009) - Photo 1

Lexus LS IV Long (facelift 2009) 600h L V8 (445 Hp) Hybrid AWD e-CVT – Full specifications
General information
Brand Lexus
Model LS
Generation LS IV Long (facelift 2009)
Modification (Engine) 600h L V8 (445 Hp) Hybrid AWD e-CVT
Start of production October, 2009 year
End of production 2012 year
Powertrain Architecture FHEV (Full Hybrid Electric Vehicle)
Body type Sedan
Seats 4-5
Doors 4
Performance specs
Fuel consumption (economy) – urban (NEDC) 11.3 l/100 km
20.8 US mpg
25 UK mpg
8.8 km/l
Fuel consumption (economy) – extra urban (NEDC) 8 l/100 km
29.4 US mpg
35.3 UK mpg
12.5 km/l
Fuel consumption (economy) – combined (NEDC) 9.3 l/100 km
25.3 US mpg
30.4 UK mpg
10.8 km/l
CO2 emissions (NEDC) 218 g/km
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 6.3 sec
Acceleration 0 – 62 mph 6.3 sec
Acceleration 0 – 60 mph 5.5 sec
Maximum speed 250 km/h, Electronically limited
155.34 mph
Emission standard Euro 5
Weight-to-power ratio 5.3 kg/Hp, 188.6 Hp/tonne
Weight-to-torque ratio 4.5 kg/Nm, 220.3 Nm/tonne
Electric cars and hybrids specs
Battery voltage 288 V
Battery technology Nickel-metal hydride (NiMH)
Battery weight 67 kg
147.71 lbs.
Battery location Inside the trunk
All-electric range (NEDC) 3 km
1.86 mi
Electric motor 1
Electric motor power 224 Hp
Electric motor Torque 300 Nm

221.27 lb.-ft.
Electric motor location Integrated into the transmission
Electric motor type Synchronous
System power 445 Hp
Internal combustion engine specs
Power 394 Hp @ 6400 rpm.
Power per litre 79.3 Hp/l
Torque 520 Nm @ 4000 rpm.
383.53 lb.-ft. @ 4000 rpm.
Engine layout Front, Longitudinal
Engine Model/Code 2UR-FSE
Engine displacement 4969 cm3
303.23 cu. in.
Number of cylinders 8
Engine configuration V-engine
Cylinder Bore 94 mm
3.7 in.
Piston Stroke 89.5 mm
3.52 in.
Compression ratio 11.8:1
Number of valves per cylinder 4
Fuel injection system Direct injection and Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Valvetrain DOHC, Dual VVT-iE
Engine oil capacity 9 l
9.51 US qt | 7.92 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 11.1 l
11.73 US qt | 9.77 UK qt
Engine systems Start & Stop System

Space, Volume and weights
Kerb Weight 2360-2450 kg
5202.91 – 5401.33 lbs.
Max. weight 2825 kg
6228.06 lbs.
Max load 375-465 kg
826.73 – 1025.15 lbs.
Trunk (boot) space – minimum 420 l
14.83 cu. ft.
Fuel tank capacity 84 l
22.19 US gal | 18.48 UK gal
Dimensions
Length 5180 mm
203.94 in.
Width 1875 mm
73.82 in.
Height 1480 mm
58.27 in.
Wheelbase 3090 mm
121.65 in.
Front track 1610 mm
63.39 in.
Rear (Back) track 1610 mm
63.39 in.
Front overhang 915 mm
36.02 in.
Rear overhang 1175 mm
46.26 in.
Ride height (ground clearance) 135 mm
5.31 in.
Drag coefficient (Cd) 0.27
Minimum turning circle (turning diameter) 12.6 m
41.34 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) and the electric motor permanently drive the four wheels of the car with the ability to work in full electric or mixed mode.
Drive wheel All wheel drive (4×4)
Number of gears and type of gearbox automatic transmission e-CVT
Front suspension Independent multi-link suspension, Transverse stabilizer, Air suspension
Rear suspension Independent multi-link suspension, Air suspension, Transverse stabilizer
Front brakes Ventilated discs, 380×36 mm
Rear brakes Ventilated discs, 335×22 mm
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 235/50 R18; 245/45 R19
Wheel rims size 7.5J x 18; 8J x 19
