Specifications: Lexus LX II (facelift 2005) 470 V8 (275 Hp) AWD Automatic 2005, 2006, 2007

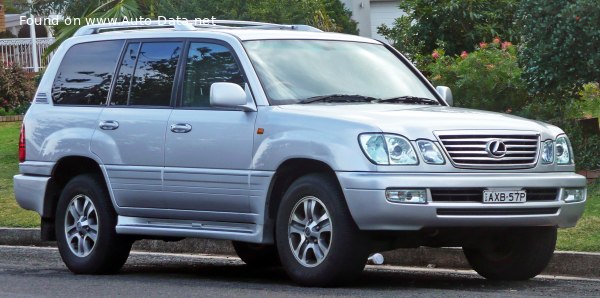

2006 Lexus LX II (facelift 2005) - Photo 1

Lexus LX II (facelift 2005) 470 V8 (275 Hp) AWD Automatic – Full specifications
General information
Brand Lexus
Model LX
Generation LX II (facelift 2005)
Modification (Engine) 470 V8 (275 Hp) AWD Automatic
Start of production 2005 year
End of production 2007 year
Powertrain Architecture Internal Combustion engine
Body type SUV
Seats 8
Doors 5
Performance specs
Fuel consumption (economy) – urban 17.9 l/100 km
13.1 US mpg
15.8 UK mpg
5.6 km/l
Fuel consumption (economy) – extra urban 12.9 l/100 km
18.2 US mpg
21.9 UK mpg
7.8 km/l
Fuel Type Petrol (Gasoline)
Weight-to-power ratio 8.9 kg/Hp, 112.2 Hp/tonne
Weight-to-torque ratio 5.5 kg/Nm, 182.4 Nm/tonne
Engine specs
Power 275 Hp @ 4800 rpm.
Power per litre 59 Hp/l
Torque 447 Nm @ 3400 rpm.
329.69 lb.-ft. @ 3400 rpm.
Engine layout Front, Longitudinal
Engine Model/Code 2UZ-FE
Engine displacement 4664 cm3
284.61 cu. in.
Number of cylinders 8
Engine configuration V-engine
Cylinder Bore 94 mm
3.7 in.
Piston Stroke 84 mm
3.31 in.
Compression ratio 9.6:1
Number of valves per cylinder 4
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Valvetrain DOHC
Engine oil capacity 6.8 l
7.19 US qt | 5.98 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 15.3 l
16.17 US qt | 13.46 UK qt

Space, Volume and weights
Kerb Weight 2450 kg
5401.33 lbs.
Max. weight 3110 kg
6856.38 lbs.
Max load 660 kg
1455.05 lbs.
Trunk (boot) space – minimum 510 l
18.01 cu. ft.
Trunk (boot) space – maximum 2560 l
90.41 cu. ft.
Fuel tank capacity 96 l
25.36 US gal | 21.12 UK gal
Permitted trailer load with brakes (12%) 2268 kg
5000.08 lbs.
Dimensions
Length 4890 mm
192.52 in.
Width 1941 mm
76.42 in.
Height 1850 mm
72.83 in.
Wheelbase 2850 mm
112.2 in.
Front track 1620 mm
63.78 in.
Rear (Back) track 1615 mm
63.58 in.
Ride height (ground clearance) 250 mm
9.84 in.
Minimum turning circle (turning diameter) 12.1 m
39.7 ft.
Approach angle 30°
Departure angle 23°
Drivetrain, brakes and suspension specs
Drive wheel All wheel drive (4×4)
Number of gears and type of gearbox 5 gears, automatic transmission
Front suspension Double wishbone
Rear suspension Independent multi-link suspension
Front brakes Ventilated discs
Rear brakes Ventilated discs
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Hydraulic Steering
Tires size 275/60 R18
Wheel rims size 8.0J x 18
