Specifications: Lexus LX IV (J300) 600 V6 (415 Hp) AWD Direct Shift 2021, 2022, 2023, 2024, 2025

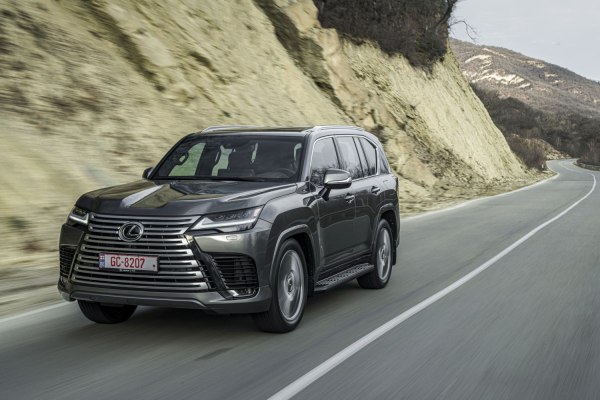

2022 Lexus LX IV (J300) - Photo 1

Lexus LX IV (J300) 600 V6 (415 Hp) AWD Direct Shift – Full specifications
General information
Brand Lexus
Model LX
Generation LX IV (J300)
Modification (Engine) 600 V6 (415 Hp) AWD Direct Shift
Start of production October, 2021 year
Powertrain Architecture Internal Combustion engine
Body type SUV
Seats 4-5
Doors 5
Performance specs
Fuel Type Petrol (Gasoline)
Maximum speed 210 km/h
130.49 mph
Emission standard Euro 5
Weight-to-power ratio 6.1 kg/Hp, 164.4 Hp/tonne
Weight-to-torque ratio 3.9 kg/Nm, 257.4 Nm/tonne
Engine specs
Power 415 Hp @ 5200 rpm.
Power per litre 120.5 Hp/l
Torque 650 Nm @ 2000-3600 rpm.
479.42 lb.-ft. @ 2000-3600 rpm.
Engine layout Front, Longitudinal
Engine Model/Code V35A-FTS
Engine displacement 3445 cm3
210.23 cu. in.
Number of cylinders 6
Engine configuration V-engine
Cylinder Bore 85.5 mm
3.37 in.
Piston Stroke 100 mm
3.94 in.
Compression ratio 10.3:1
Number of valves per cylinder 4
Fuel injection system Direct injection and Multi-port manifold injection
Engine aspiration Twin-Turbo, Intercooler
Valvetrain DOHC, Dual VVT-i
Engine oil capacity 7.3 l
7.71 US qt | 6.42 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 14.6 l
15.43 US qt | 12.85 UK qt
Engine systems Start & Stop System
Particulate filter

Space, Volume and weights
Kerb Weight 2525-2680 kg
5566.67 – 5908.39 lbs.
Max. weight 3280 kg
7231.16 lbs.
Max load 600-755 kg
1322.77 – 1664.49 lbs.
Trunk (boot) space – minimum 767 l
27.09 cu. ft.
Trunk (boot) space – maximum 1960 l
69.22 cu. ft.
Fuel tank capacity 110 l
29.06 US gal | 24.2 UK gal
Dimensions
Length 5100 mm
200.79 in.
Width 1990 mm
78.35 in.
Height 1885-1895 mm
74.21 – 74.61 in.
Wheelbase 2850 mm
112.2 in.
Front track 1675 mm
65.94 in.
Rear (Back) track 1680 mm
66.14 in.
Ride height (ground clearance) 200-205 mm
7.87 – 8.07 in.
Minimum turning circle (turning diameter) 12.8 m
41.99 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives permanently the four wheels of the vehicle.
Drive wheel All wheel drive (4×4)
Number of gears and type of gearbox 10 gears, automatic transmission Direct Shift
Front suspension Double wishbone
Rear suspension Independent multi-link suspension
Front brakes Ventilated discs, 354×32 mm
Rear brakes Ventilated discs, 335×20 mm
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Wheel rims size 20; 22
