Specifications: Lexus RZ 500e 77 kWh (380 Hp) DIRECT4 2025

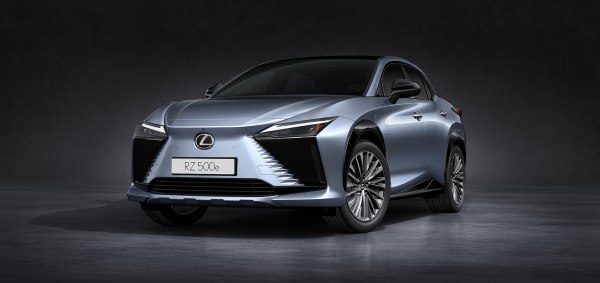

2023 Lexus RZ - Photo 1

Lexus RZ 500e 77 kWh (380 Hp) DIRECT4 – Full specifications
General information
Brand Lexus
Model RZ
Generation RZ
Modification (Engine) 500e 77 kWh (380 Hp) DIRECT4
Start of production 2025 year
Powertrain Architecture BEV (Electric Vehicle)
Body type SUV
Seats 5
Doors 5
Performance specs
Fuel Type Electricity
Acceleration 0 – 100 km/h 4.6 sec
Acceleration 0 – 62 mph 4.6 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 4.4 sec
Weight-to-power ratio 5.5 kg/Hp, 181 Hp/tonne
Electric cars and hybrids specs
Gross battery capacity 77 kWh
Battery technology Lithium-ion (Li-Ion)
Battery location Below the floor
All-electric range (WLTP) 500 km
310.69 mi
Average Energy consumption (WLTP) 16.6 kWh/100 km

26.72 kWh/100 mi
126 MPGe
6 km/kWh
3.7 mi/kWh
Charging ports Log in to see.Log in to see.
Electric motor 1
Electric motor power 227 Hp
Electric motor Torque 269 Nm

198.4 lb.-ft.
Electric motor location Front axle, Transverse
Electric motor 2
Electric motor power 227 Hp
Electric motor Torque 269 Nm

198.4 lb.-ft.
Electric motor location Rear axle, Transverse
System power 380 Hp

Space, Volume and weights
Kerb Weight 2100-2155 kg
4629.71 – 4750.96 lbs.
Permitted trailer load with brakes (12%) 1500 kg
3306.93 lbs.
Dimensions
Length 4805 mm
189.17 in.
Width 1895 mm
74.61 in.
Width including mirrors 2157 mm
84.92 in.
Height 1635 mm
64.37 in.
Wheelbase 2850 mm
112.2 in.
Front overhang 975 mm
38.39 in.
Rear overhang 980 mm
38.58 in.
Drivetrain, brakes and suspension specs
Drivetrain Architecture One electric motor drives the front wheels, one electric motor drives the rear wheels.
Drive wheel All wheel drive (4×4)
Number of gears and type of gearbox 1 gears, automatic transmission
Front suspension Independent, type McPherson with coil spring and anti-roll bar
Rear suspension Independent multi-link spring suspension with stabilizer
Front brakes Ventilated discs
Rear brakes Ventilated discs
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Wheel rims size 18; 20
