Specifications: Lincoln MKX I 3.5 V6 24V (265 Hp) AWD Automatic 2006, 2007, 2008, 2009

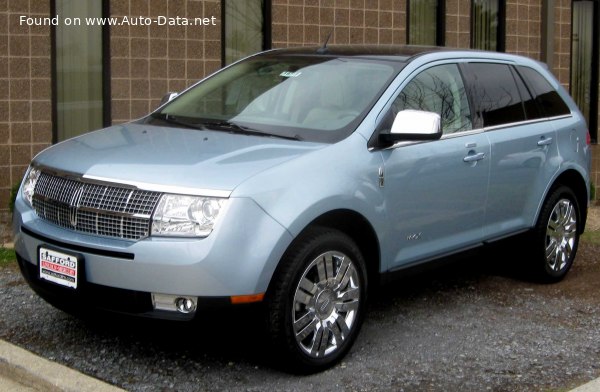

2007 Lincoln MKX I - Photo 1

Lincoln MKX I 3.5 V6 24V (265 Hp) AWD Automatic – Full specifications
General information
Brand Lincoln
Model MKX
Generation MKX I
Modification (Engine) 3.5 V6 24V (265 Hp) AWD Automatic
Start of production 2006 year
End of production 2009 year
Powertrain Architecture Internal Combustion engine
Body type Crossover
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – urban 15.7 l/100 km
15 US mpg
18 UK mpg
6.4 km/l
Fuel consumption (economy) – extra urban 10.7 l/100 km
22 US mpg
26.4 UK mpg
9.3 km/l
Fuel consumption (economy) – combined 13.1 l/100 km
18 US mpg
21.6 UK mpg
7.6 km/l
Fuel Type Petrol (Gasoline)
Weight-to-power ratio 7.6 kg/Hp, 132.2 Hp/tonne
Weight-to-torque ratio 5.9 kg/Nm, 169.2 Nm/tonne
Engine specs
Power 265 Hp @ 6250 rpm.
Power per litre 75.8 Hp/l
Torque 339 Nm @ 4500 rpm.
250.03 lb.-ft. @ 4500 rpm.
Maximum engine speed 6700 rpm.
Engine layout Front, Transverse
Engine Model/Code Cyclone
Engine displacement 3496 cm3
213.34 cu. in.
Number of cylinders 6
Engine configuration V-engine
Cylinder Bore 92.5 mm
3.64 in.
Piston Stroke 86.7 mm
3.41 in.
Compression ratio 10.3:1
Number of valves per cylinder 4
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Valvetrain DOHC, i-VCT
Engine oil capacity 5.2 l
5.49 US qt | 4.58 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 11.09 l
11.72 US qt | 9.76 UK qt

Space, Volume and weights
Kerb Weight 2004 kg
4418.06 lbs.
Max. weight 2448 kg
5396.92 lbs.
Max load 444 kg
978.85 lbs.
Trunk (boot) space – minimum 900 l
31.78 cu. ft.
Trunk (boot) space – maximum 1954 l
69 cu. ft.
Fuel tank capacity 76 l
20.08 US gal | 16.72 UK gal
Permitted trailer load with brakes (12%) 1588 kg
3500.94 lbs.
Dimensions
Length 4737 mm
186.5 in.
Width 1925 mm
75.79 in.
Width including mirrors 2212 mm
87.09 in.
Height 1753 mm
69.02 in.
Wheelbase 2824 mm
111.18 in.
Front track 1653 mm
65.08 in.
Rear (Back) track 1648 mm
64.88 in.
Ride height (ground clearance) 203 mm
7.99 in.
Drag coefficient (Cd) 0.36
Minimum turning circle (turning diameter) 11.74 m
38.52 ft.
Approach angle 16.7°
Departure angle 25°
Ramp-over (brakeover) angle 18°
Drivetrain, brakes and suspension specs
Drive wheel All wheel drive (4×4)
Number of gears and type of gearbox 6 gears, automatic transmission
Front suspension Independent coil spring
Rear suspension Independent coil spring
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Tires size 245/50 R20
Wheel rims size 20
