Specifications: Lincoln Navigator III L 5.4i V8 (310 Hp) Automatic 2008, 2009, 2010, 2011, 2012, 2013, 2014

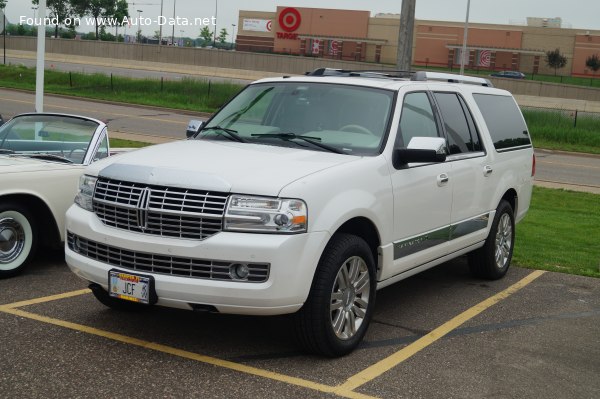

2007 Lincoln Navigator III L - Photo 1

Lincoln Navigator III L 5.4i V8 (310 Hp) Automatic – Full specifications
General information
Brand Lincoln
Model Navigator
Generation Navigator III L
Modification (Engine) 5.4i V8 (310 Hp) Automatic
Start of production 2008 year
End of production 2014 year
Powertrain Architecture Internal Combustion engine
Body type SUV
Seats 8
Doors 5
Performance specs
Fuel consumption (economy) – urban 16.8 l/100 km
14 US mpg
16.8 UK mpg
6 km/l
Fuel consumption (economy) – extra urban 11.8 l/100 km
19.9 US mpg
23.9 UK mpg
8.5 km/l
Fuel consumption (economy) – combined 14.7 l/100 km
16 US mpg
19.2 UK mpg
6.8 km/l
Fuel Type Petrol (Gasoline)
Weight-to-power ratio 8.8 kg/Hp, 113.1 Hp/tonne
Weight-to-torque ratio 5.5 kg/Nm, 180.6 Nm/tonne
Engine specs
Power 310 Hp @ 5000 rpm.
Power per litre 57.3 Hp/l
Torque 495 Nm @ 3600 rpm.
365.09 lb.-ft. @ 3600 rpm.
Maximum engine speed 5400 rpm.
Engine layout Front, Longitudinal
Engine Model/Code Triton
Engine displacement 5408 cm3
330.02 cu. in.
Number of cylinders 8
Engine configuration V-engine
Cylinder Bore 90.2 mm
3.55 in.
Piston Stroke 105.9 mm
4.17 in.
Compression ratio 9.8:1
Number of valves per cylinder 3
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Valvetrain SOHC, VVT
Engine oil capacity 6.6 l
6.97 US qt | 5.81 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 15.5 l
16.38 US qt | 13.64 UK qt

Space, Volume and weights
Kerb Weight 2741 kg
6042.87 lbs.
Max. weight 3493 kg
7700.75 lbs.
Max load 752 kg
1657.88 lbs.
Trunk (boot) space – minimum 1209 l
42.7 cu. ft.
Trunk (boot) space – maximum 3630 l
128.19 cu. ft.
Fuel tank capacity 127 l
33.55 US gal | 27.94 UK gal
Dimensions
Length 5672 mm
223.31 in.
Width 2002 mm
78.82 in.
Width including mirrors 2332 mm
91.81 in.
Height 1984 mm
78.11 in.
Wheelbase 3327 mm
130.98 in.
Front track 1699 mm
66.89 in.
Rear (Back) track 1702 mm
67.01 in.
Ride height (ground clearance) 231 mm
9.09 in.
Drag coefficient (Cd) 0.40
Minimum turning circle (turning diameter) 13.39 m
43.93 ft.
Approach angle 22.2°
Departure angle 20.5°
Ramp-over (brakeover) angle 18.4°
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the rear wheels of the vehicle.
Drive wheel Rear wheel drive
Number of gears and type of gearbox 6 gears, automatic transmission
Front suspension Independent coil spring
Rear suspension Independent coil spring
Front brakes Ventilated discs
Rear brakes Ventilated discs
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Tires size 255/70 R18
Wheel rims size 18
