Specifications: Nissan 100 NX (B13) 1.6 (90 Hp) Automatic 1990, 1991, 1992, 1993, 1994

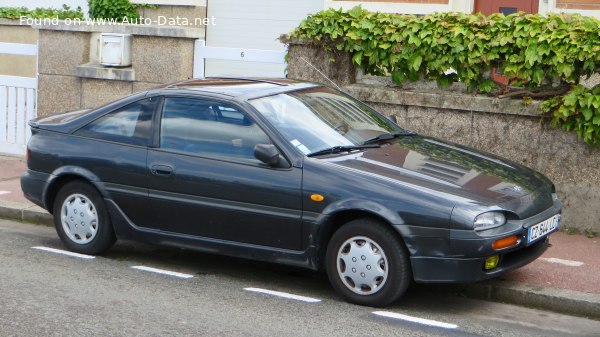

1990 Nissan 100 NX (B13) - Photo 1

Nissan 100 NX (B13) 1.6 (90 Hp) Automatic – Full specifications
General information
Brand Nissan
Model 100 NX
Generation 100 NX (B13)
Modification (Engine) 1.6 (90 Hp) Automatic
Start of production 1990 year
End of production 1994 year
Powertrain Architecture Internal Combustion engine
Body type Coupe
Seats 4
Doors 2
Performance specs
Fuel consumption (economy) – urban 7.2 l/100 km
32.67 US mpg
39.23 UK mpg
13.89 km/l
Fuel consumption (economy) – extra urban 5.3 l/100 km
44.38 US mpg
53.3 UK mpg
18.87 km/l
Fuel consumption (economy) – combined 6.2 l/100 km
37.94 US mpg
45.56 UK mpg
16.13 km/l
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 10.7 sec
Acceleration 0 – 62 mph 10.7 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 10.2 sec
Maximum speed 185 km/h
114.95 mph
Weight-to-power ratio 11.9 kg/Hp, 84.3 Hp/tonne
Weight-to-torque ratio 7.8 kg/Nm, 127.5 Nm/tonne
Engine specs
Power 90 Hp @ 6000 rpm.
Power per litre 56.4 Hp/l
Torque 136 Nm @ 4000 rpm.
100.31 lb.-ft. @ 4000 rpm.
Engine layout Front, Transverse
Engine Model/Code GA16DS
Engine displacement 1597 cm3
97.45 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 76 mm
2.99 in.
Piston Stroke 88 mm
3.46 in.
Compression ratio 9.8:1
Number of valves per cylinder 4
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Valvetrain DOHC
Engine oil capacity 3.2 l
3.38 US qt | 2.82 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 5.5 l
5.81 US qt | 4.84 UK qt

Space, Volume and weights
Kerb Weight 1067 kg
2352.33 lbs.
Max. weight 1459 kg
3216.54 lbs.
Max load 392 kg
864.21 lbs.
Trunk (boot) space – minimum 330 l
11.65 cu. ft.
Fuel tank capacity 50 l
13.21 US gal | 11 UK gal
Dimensions
Length 4135 mm
162.8 in.
Width 1680 mm
66.14 in.
Height 1315 mm
51.77 in.
Wheelbase 2430 mm
95.67 in.
Front track 1435 mm
56.5 in.
Rear (Back) track 1415 mm
55.71 in.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 4 gears, automatic transmission
Front suspension Wishbone
Rear suspension Spring Strut
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Hydraulic Steering
Tires size 175/65 R14
Wheel rims size 14
