Specifications: Nissan 240SX Coupe (S13 facelift 1991) 2.4 (155 Hp) 1991, 1992, 1993, 1994

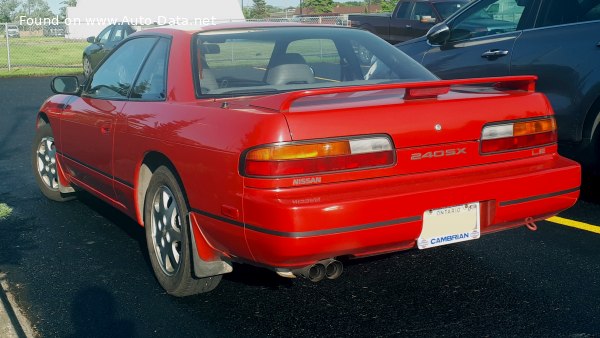

1991 Nissan 240SX Coupe (S13 facelift 1991) - Photo 1

Nissan 240SX Coupe (S13 facelift 1991) 2.4 (155 Hp) – Full specifications
General information
Brand Nissan
Model 240SX
Generation 240SX Coupe (S13 facelift 1991)
Modification (Engine) 2.4 (155 Hp)
Start of production 1991 year
End of production 1994 year
Powertrain Architecture Internal Combustion engine
Body type Coupe
Seats 4
Doors 2
Performance specs
Fuel consumption (economy) – urban 10.7 l/100 km
21.98 US mpg
26.4 UK mpg
9.35 km/l
Fuel consumption (economy) – extra urban 8.4 l/100 km
28 US mpg
33.63 UK mpg
11.9 km/l
Fuel Type Petrol (Gasoline)
Weight-to-power ratio 7.8 kg/Hp, 128.6 Hp/tonne
Weight-to-torque ratio 5.6 kg/Nm, 180.1 Nm/tonne
Engine specs
Power 155 Hp @ 5600 rpm.
Power per litre 64.9 Hp/l
Torque 217 Nm @ 4400 rpm.
160.05 lb.-ft. @ 4400 rpm.
Engine layout Front, Longitudinal
Engine Model/Code KA24DE
Engine displacement 2389 cm3
145.79 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 89 mm
3.5 in.
Piston Stroke 96 mm
3.78 in.
Compression ratio 8.6:1
Number of valves per cylinder 4
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Valvetrain DOHC
Engine oil capacity 3.5 l
3.7 US qt | 3.08 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 6.7 l
7.08 US qt | 5.9 UK qt

Space, Volume and weights
Kerb Weight 1205 kg
2656.57 lbs.
Trunk (boot) space – maximum 244 l
8.62 cu. ft.
Fuel tank capacity 60 l
15.85 US gal | 13.2 UK gal
Permitted trailer load without brakes 206 kg
454.15 lbs.
Permitted towbar download 110 kg
242.51 lbs.
Dimensions
Length 4521 mm
177.99 in.
Width 1689 mm
66.5 in.
Height 1290 mm
50.79 in.
Wheelbase 2474 mm
97.4 in.
Front track 1466 mm
57.72 in.
Rear (Back) track 1461 mm
57.52 in.
Minimum turning circle (turning diameter) 9.4 m
30.84 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the rear wheels of the vehicle.
Drive wheel Rear wheel drive
Number of gears and type of gearbox 5 gears, manual transmission
Front suspension Independent, type McPherson with coil spring and anti-roll bar
Rear suspension Dependent, multi-link spring with telescopic shock absorbers, Transverse stabilizer, Trailing arm
Front brakes Ventilated discs, 252 mm
Rear brakes Disc, 258 mm
Steering type Steering rack and pinion
Power steering Hydraulic Steering
Tires size Front wheel tires: 195/60 R15; 205/60 R15
Rear wheel tires: 195/60 R15; 205/60 R15
Wheel rims size Front wheel rims: 6J x 15
Rear wheel rims: 6J x 15
