Specifications: Nissan 350Z (Z33) 3.5 i V6 24V (313 Hp) 2006, 2007

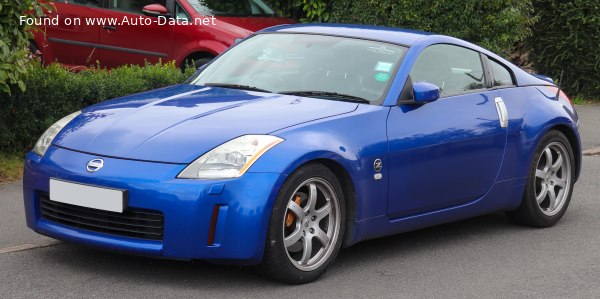

2003 Nissan 350Z (Z33) - Photo 1

Nissan 350Z (Z33) 3.5 i V6 24V (313 Hp) – Full specifications
General information
Brand Nissan
Model 350Z
Generation 350Z (Z33)
Modification (Engine) 3.5 i V6 24V (313 Hp)
Start of production 2006 year
End of production 2007 year
Powertrain Architecture Internal Combustion engine
Body type Coupe
Seats 2
Doors 2
Performance specs
Fuel consumption (economy) – urban 16.1 l/100 km
14.61 US mpg
17.55 UK mpg
6.21 km/l
Fuel consumption (economy) – extra urban 8.9 l/100 km
26.43 US mpg
31.74 UK mpg
11.24 km/l
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 5.8 sec
Acceleration 0 – 62 mph 5.8 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 5.5 sec
Maximum speed 250 km/h
155.34 mph
Weight-to-power ratio 4.9 kg/Hp, 202.6 Hp/tonne
Weight-to-torque ratio 4.4 kg/Nm, 227.8 Nm/tonne
Engine specs
Power 313 Hp @ 6400 rpm.
Power per litre 89.5 Hp/l
Torque 352 Nm @ 4800 rpm.
259.62 lb.-ft. @ 4800 rpm.
Engine layout Front, Longitudinal
Engine Model/Code VQ35HR
Engine displacement 3498 cm3
213.46 cu. in.
Number of cylinders 6
Engine configuration V-engine
Cylinder Bore 95.5 mm
3.76 in.
Piston Stroke 81.4 mm
3.2 in.
Compression ratio 10.3:1
Number of valves per cylinder 4
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Valvetrain DOHC
Engine oil capacity 4.9 l
5.18 US qt | 4.31 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 9 l
9.51 US qt | 7.92 UK qt

Space, Volume and weights
Kerb Weight 1545 kg
3406.14 lbs.
Max. weight 1820 kg
4012.41 lbs.
Max load 275 kg
606.27 lbs.
Trunk (boot) space – minimum 235 l
8.3 cu. ft.
Fuel tank capacity 80 l
21.13 US gal | 17.6 UK gal
Dimensions
Length 4310 mm
169.69 in.
Width 1816 mm
71.5 in.
Height 1316 mm
51.81 in.
Wheelbase 2650 mm
104.33 in.
Front track 1534 mm
60.39 in.
Rear (Back) track 1544 mm
60.79 in.
Minimum turning circle (turning diameter) 11.2 m
36.75 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the rear wheels of the vehicle.
Drive wheel Rear wheel drive
Number of gears and type of gearbox 6 gears, manual transmission
Front suspension Coil spring
Rear suspension Coil spring
Front brakes Ventilated discs
Rear brakes Ventilated discs
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Tires size 225/45 R18; 245/45 R18
Wheel rims size 8J X 18
