Specifications: Nissan Armada III (Y63) NISMO 3.5 V6 (460 Hp) 4WD Automatic 2025

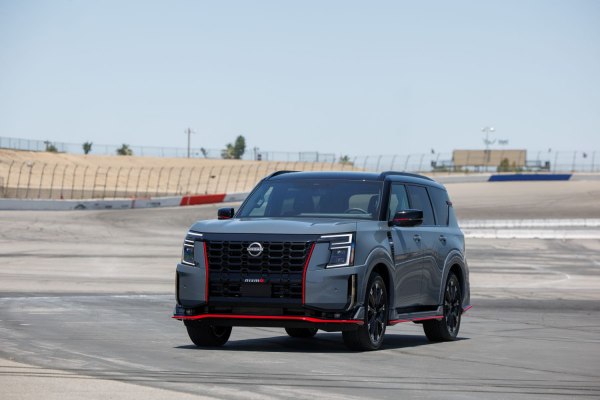

2025 Nissan Armada III (Y63) - Photo 1

Nissan Armada III (Y63) NISMO 3.5 V6 (460 Hp) 4WD Automatic – Full specifications
General information
Brand Nissan
Model Armada
Generation Armada III (Y63)
Modification (Engine) NISMO 3.5 V6 (460 Hp) 4WD Automatic
Start of production June, 2025 year
Powertrain Architecture Internal Combustion engine
Body type SUV
Seats 7
Doors 5
Performance specs
Fuel consumption (economy) – urban (EPA) 14.7 l/100 km
16 US mpg
19.22 UK mpg
6.8 km/l
Fuel consumption (economy) – extra urban (EPA) 12.4 l/100 km
18.97 US mpg
22.78 UK mpg
8.06 km/l
Fuel consumption (economy) – combined (EPA) 13.8 l/100 km
17.04 US mpg
20.47 UK mpg
7.25 km/l
Fuel Type Petrol (Gasoline)
Emission standard LEV4-ULEV50
Weight-to-power ratio 6 kg/Hp, 166.2 Hp/tonne
Weight-to-torque ratio 4 kg/Nm, 252.9 Nm/tonne
Engine specs
Power 460 Hp @ 5600 rpm.
Power per litre 131.7 Hp/l
Torque 700 Nm @ 3600 rpm.
516.29 lb.-ft. @ 3600 rpm.
Maximum engine speed 6000 rpm.
Engine layout Front, Longitudinal
Engine Model/Code VR35DDTT
Engine displacement 3492 cm3
213.09 cu. in.
Number of cylinders 6
Engine configuration V-engine
Cylinder Bore 86 mm
3.39 in.
Piston Stroke 100.2 mm
3.94 in.
Compression ratio 10.5:1
Number of valves per cylinder 4
Fuel injection system Direct injection
Engine aspiration Twin-Turbo, Intercooler
Valvetrain DOHC
Engine oil capacity 5.3 l
5.6 US qt | 4.66 UK qt

Space, Volume and weights
Kerb Weight 2768 kg
6102.4 lbs.
Max. weight 3543 kg
7810.98 lbs.
Max load 775 kg
1708.58 lbs.
Trunk (boot) space – minimum 578 l
20.41 cu. ft.
Trunk (boot) space – maximum 2750 l
97.12 cu. ft.
Fuel tank capacity 89 l
23.51 US gal | 19.58 UK gal
Permitted trailer load with brakes (12%) 3856 kg
8501.02 lbs.
Permitted trailer load without brakes 386 kg
850.98 lbs.
Dimensions
Length 5357 mm
210.91 in.
Width with mirrors folded 2116 mm
83.31 in.
Width including mirrors 2350 mm
92.52 in.
Height 1945 mm
76.57 in.
Wheelbase 3075 mm
121.06 in.
Ride height (ground clearance) 226-277 mm
8.9 – 10.91 in.
Approach angle 19.5-23°
Departure angle 22-24.5°
Ramp-over (brakeover) angle 22-26°
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives permanently the four wheels of the vehicle.
Drive wheel All wheel drive (4×4)
Number of gears and type of gearbox 9 gears, automatic transmission
Front suspension Double wishbone, Air suspension
Rear suspension Double wishbone, Air suspension
Front brakes Ventilated discs, 350×30 mm
Rear brakes Ventilated discs, 350×20 mm
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 275/50 R22
Wheel rims size 22
