Specifications: Nissan Liberty (M12) 2.0 i 16V GT4 (230 Hp) 1998, 1999, 2000, 2001, 2002

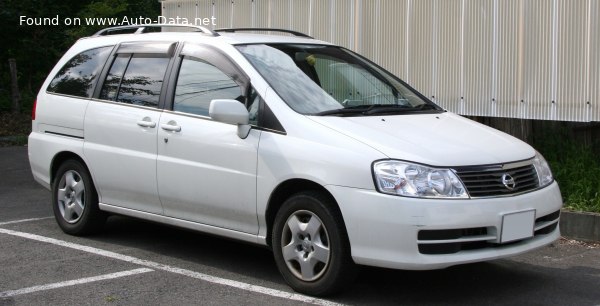

1998 Nissan Liberty (M12) - Photo 1

Nissan Liberty (M12) 2.0 i 16V GT4 (230 Hp) – Full specifications
General information
Brand Nissan
Model Liberty
Generation Liberty (M12)
Modification (Engine) 2.0 i 16V GT4 (230 Hp)
Start of production 1998 year
End of production September, 2002 year
Powertrain Architecture Internal Combustion engine
Body type Minivan
Seats 7
Doors 5
Performance specs
Fuel consumption (economy) – urban 12.2 l/100 km
19.28 US mpg
23.15 UK mpg
8.2 km/l
Fuel consumption (economy) – extra urban 6.62 l/100 km
35.53 US mpg
42.67 UK mpg
15.11 km/l
Fuel Type Petrol (Gasoline)
Weight-to-power ratio 7.1 kg/Hp, 141.1 Hp/tonne
Weight-to-torque ratio 5.9 kg/Nm, 168.7 Nm/tonne
Engine specs
Power 230 Hp @ 6000 rpm.
Power per litre 115.1 Hp/l
Torque 275 Nm @ 3600 rpm.
202.83 lb.-ft. @ 3600 rpm.
Engine layout Front, Transverse
Engine displacement 1998 cm3
121.93 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 86 mm
3.39 in.
Piston Stroke 86 mm
3.39 in.
Compression ratio 8.5:1
Number of valves per cylinder 4
Fuel injection system Multi-port manifold injection
Engine aspiration Turbocharger

Space, Volume and weights
Kerb Weight 1630 kg
3593.53 lbs.
Max. weight 2015 kg
4442.31 lbs.
Max load 385 kg
848.78 lbs.
Fuel tank capacity 60 l
15.85 US gal | 13.2 UK gal
Dimensions
Length 4575 mm
180.12 in.
Width 1695 mm
66.73 in.
Height 1630 mm
64.17 in.
Wheelbase 2690 mm
105.91 in.
Front track 1470 mm
57.87 in.
Rear (Back) track 1470 mm
57.87 in.
Drivetrain, brakes and suspension specs
Drive wheel All wheel drive (4×4)
Number of gears and type of gearbox 4 gears, automatic transmission
Front suspension Coil spring
Rear suspension Coil spring
Front brakes Ventilated discs
Rear brakes Drum
Assisting systems ABS (Anti-lock braking system)
Power steering Hydraulic Steering
Tires size 195/65 R15
