Specifications: Nissan Note I (E11) 1.5 dCi (86 Hp) 2005, 2006, 2007, 2008, 2009

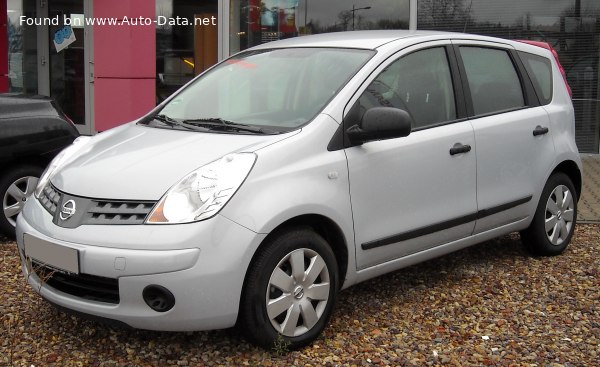

2005 Nissan Note I (E11) - Photo 1

Nissan Note I (E11) 1.5 dCi (86 Hp) – Full specifications
General information
Brand Nissan
Model Note
Generation Note I (E11)
Modification (Engine) 1.5 dCi (86 Hp)
Start of production 2005 year
End of production 2009 year
Powertrain Architecture Internal Combustion engine
Body type Hatchback
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – urban 5.8 l/100 km
40.55 US mpg
48.7 UK mpg
17.24 km/l
Fuel consumption (economy) – extra urban 4.6 l/100 km
51.13 US mpg
61.41 UK mpg
21.74 km/l
Fuel Type Diesel
Acceleration 0 – 100 km/h 13 sec
Acceleration 0 – 62 mph 13 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 12.4 sec
Maximum speed 168 km/h
104.39 mph
Weight-to-power ratio 13.5 kg/Hp, 73.8 Hp/tonne
Weight-to-torque ratio 5.8 kg/Nm, 171.7 Nm/tonne
Engine specs
Power 86 Hp @ 3750 rpm.
Power per litre 58.9 Hp/l
Torque 200 Nm @ 2000 rpm.
147.51 lb.-ft. @ 2000 rpm.
Engine layout Front, Transverse
Engine Model/Code K9K 276, K9K 400
Engine displacement 1461 cm3
89.16 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 76 mm
2.99 in.
Piston Stroke 80.5 mm
3.17 in.
Compression ratio 18.8:1
Number of valves per cylinder 2
Fuel injection system Diesel Commonrail
Engine aspiration Turbocharger, Intercooler
Valvetrain OHC
Engine oil capacity 4.4 l
4.65 US qt | 3.87 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 6 l
6.34 US qt | 5.28 UK qt

Space, Volume and weights
Kerb Weight 1165 kg
2568.39 lbs.
Max. weight 1610 kg
3549.44 lbs.
Max load 445 kg
981.06 lbs.
Trunk (boot) space – minimum 280 l
9.89 cu. ft.
Trunk (boot) space – maximum 1332 l
47.04 cu. ft.
Fuel tank capacity 46 l
12.15 US gal | 10.12 UK gal
Dimensions
Length 4083 mm
160.75 in.
Width 1690 mm
66.54 in.
Height 1550 mm
61.02 in.
Wheelbase 2600 mm
102.36 in.
Front track 1470 mm
57.87 in.
Rear (Back) track 1460 mm
57.48 in.
Minimum turning circle (turning diameter) 11 m
36.09 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 5 gears, manual transmission
Front suspension Spring Strut
Rear suspension Torsion
Front brakes Disc
Rear brakes Drum
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Tires size 185/55 R16
