Specifications: Nissan Note III (E13) Autech Crossover e-POWER 1.2 (184 Hp) Hybrid 4WD Automatic 2021, 2022, 2023, 2024, 2025

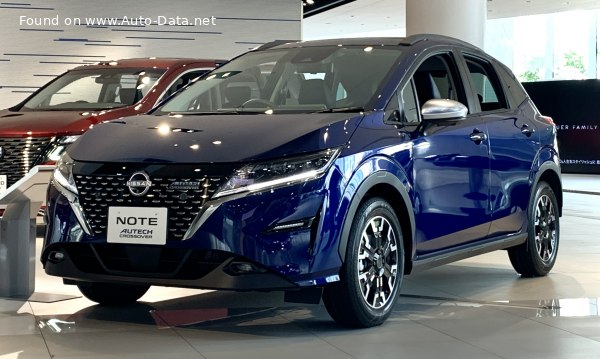

2022 Nissan Note III (E13) Autech Crossover - Photo 1

Nissan Note III (E13) Autech Crossover e-POWER 1.2 (184 Hp) Hybrid 4WD Automatic – Full specifications
General information
Brand Nissan
Model Note
Generation Note III (E13) Autech Crossover
Modification (Engine) e-POWER 1.2 (184 Hp) Hybrid 4WD Automatic
Start of production October, 2021 year
Powertrain Architecture FHEV (Full Hybrid Electric Vehicle)
Body type Crossover
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – urban (WLTC) 4.32 l/100 km
54.45 US mpg
65.39 UK mpg
23.15 km/l
Fuel consumption (economy) – extra urban (WLTC) 3.87 l/100 km
60.78 US mpg
72.99 UK mpg
25.84 km/l
Fuel consumption (economy) – combined (WLTC) 4.2 l/100 km
56 US mpg
67.26 UK mpg
23.81 km/l
Fuel Type Petrol (Gasoline)
Weight-to-power ratio 7.3 kg/Hp, 137.3 Hp/tonne
Weight-to-torque ratio 13 kg/Nm, 76.9 Nm/tonne
Electric cars and hybrids specs
Battery technology Lithium-ion (Li-Ion)
Battery location Below the floor, under the front seats
Electric motor 1
Electric motor power 116 Hp @ 2900-10341 rpm.
Electric motor Torque 280 Nm @ 0-2900 rpm.

206.52 lb.-ft. @ 0-2900 rpm.
Electric motor model/code EM47
Electric motor location Front, Transverse
Electric motor type Synchronous
Electric motor 2
Electric motor power 68 Hp @ 4775-10024 rpm.
Electric motor Torque 100 Nm @ 0-4775 rpm.

73.76 lb.-ft. @ 0-4775 rpm.
Electric motor model/code MM48
Electric motor location Rear axle, Transverse
Electric motor type Synchronous
System power 184 Hp
Internal combustion engine specs
Power 82 Hp @ 6000 rpm.
Power per litre 68.4 Hp/l
Torque 103 Nm @ 4800 rpm.
75.97 lb.-ft. @ 4800 rpm.
Engine layout Front, Transverse
Engine Model/Code HR12DE
Engine displacement 1198 cm3
73.11 cu. in.
Number of cylinders 3
Engine configuration Inline
Cylinder Bore 78 mm
3.07 in.
Piston Stroke 83.6 mm
3.29 in.
Compression ratio 12:1
Number of valves per cylinder 4
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Valvetrain DOHC, VVT
Engine systems Start & Stop System

Space, Volume and weights
Kerb Weight 1340 kg
2954.19 lbs.
Max. weight 1615 kg
3560.47 lbs.
Max load 275 kg
606.27 lbs.
Fuel tank capacity 36 l
9.51 US gal | 7.92 UK gal
Dimensions
Length 4045 mm
159.25 in.
Width 1695 mm
66.73 in.
Height 1520 mm
59.84 in.
Wheelbase 2580 mm
101.57 in.
Front track 1490 mm
58.66 in.
Rear (Back) track 1490 mm
58.66 in.
Ride height (ground clearance) 125 mm
4.92 in.
Minimum turning circle (turning diameter) 9.8 m
32.15 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the generator only, with no mechanical connection to the drive. Two electric motors drive the front and rear wheels.
Drive wheel All wheel drive (4×4)
Number of gears and type of gearbox 1 gears, automatic transmission
Front suspension Independent type McPherson
Rear suspension Torsion
Front brakes Ventilated discs
Rear brakes Drum
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 185/60 R16 86H
Wheel rims size 16
