Specifications: Nissan Pathfinder II 3.5 i V6 24V (220 Hp) 4WD 2001, 2002, 2003, 2004

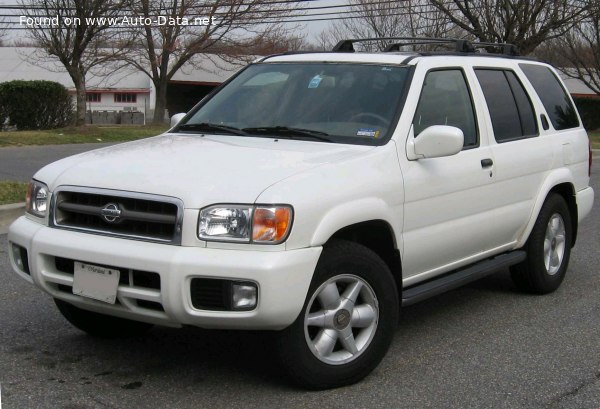

1995 Nissan Pathfinder II - Photo 1

Nissan Pathfinder II 3.5 i V6 24V (220 Hp) 4WD – Full specifications
General information
Brand Nissan
Model Pathfinder
Generation Pathfinder II
Modification (Engine) 3.5 i V6 24V (220 Hp) 4WD
Start of production 2001 year
End of production 2004 year
Powertrain Architecture Internal Combustion engine
Body type SUV
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – urban 18.7 l/100 km
12.58 US mpg
15.11 UK mpg
5.35 km/l
Fuel consumption (economy) – extra urban 12 l/100 km
19.6 US mpg
23.54 UK mpg
8.33 km/l
Fuel consumption (economy) – combined 14.5 l/100 km
16.22 US mpg
19.48 UK mpg
6.9 km/l
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 10.3 sec
Acceleration 0 – 62 mph 10.3 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 9.8 sec
Maximum speed 175 km/h
108.74 mph
Weight-to-power ratio 8.9 kg/Hp, 112.8 Hp/tonne
Weight-to-torque ratio 5.4 kg/Nm, 186.2 Nm/tonne
Engine specs
Power 220 Hp @ 6000 rpm.
Power per litre 62.9 Hp/l
Torque 363 Nm @ 3200 rpm.
267.74 lb.-ft. @ 3200 rpm.
Engine layout Front, Longitudinal
Engine Model/Code VQ35DE
Engine displacement 3498 cm3
213.46 cu. in.
Number of cylinders 6
Engine configuration V-engine
Cylinder Bore 95.5 mm
3.76 in.
Piston Stroke 81.4 mm
3.2 in.
Compression ratio 10:1
Number of valves per cylinder 4
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Valvetrain DOHC
Engine oil capacity 5 l
5.28 US qt | 4.4 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 9.2 l
9.72 US qt | 8.09 UK qt

Space, Volume and weights
Kerb Weight 1950 kg
4299.01 lbs.
Max. weight 2400 kg
5291.09 lbs.
Max load 450 kg
992.08 lbs.
Trunk (boot) space – minimum 435 l
15.36 cu. ft.
Trunk (boot) space – maximum 1670 l
58.98 cu. ft.
Fuel tank capacity 80 l
21.13 US gal | 17.6 UK gal
Dimensions
Length 4640 mm
182.68 in.
Width 1820 mm
71.65 in.
Height 1750 mm
68.9 in.
Wheelbase 2700 mm
106.3 in.
Front track 1520 mm
59.84 in.
Rear (Back) track 1525 mm
60.04 in.
Drivetrain, brakes and suspension specs
Drive wheel All wheel drive (4×4)
Number of gears and type of gearbox 4 gears, automatic transmission
Front suspension Coil spring
Rear suspension Coil spring
Front brakes Ventilated discs
Rear brakes Drum
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Hydraulic Steering
Tires size 255/65 R16
