Specifications: Nissan Pathfinder V 3.5 V6 (284 Hp) 4WD Automatic 2021, 2022, 2023, 2024, 2025

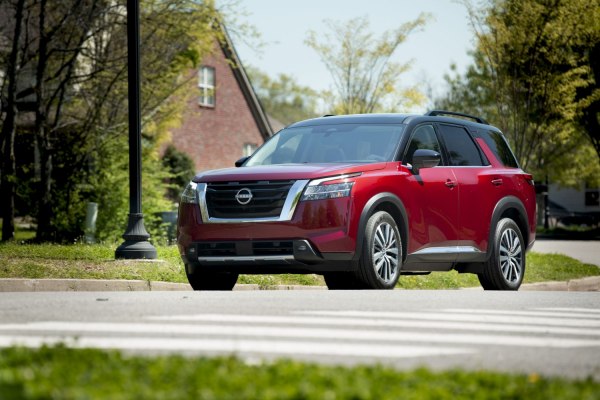

2022 Nissan Pathfinder V - Photo 1

Nissan Pathfinder V 3.5 V6 (284 Hp) 4WD Automatic – Full specifications
General information
Brand Nissan
Model Pathfinder
Generation Pathfinder V
Modification (Engine) 3.5 V6 (284 Hp) 4WD Automatic
Start of production 2021 year
Powertrain Architecture Internal Combustion engine
Body type SUV
Seats 7-8
Doors 5
Performance specs
Fuel consumption (economy) – urban 11.2-11.8 l/100 km
21 – 19.93 US mpg
25.22 – 23.94 UK mpg
8.93 – 8.47 km/l
Fuel consumption (economy) – extra urban 8.7-9.4 l/100 km
27.04 – 25.02 US mpg
32.47 – 30.05 UK mpg
11.49 – 10.64 km/l
Fuel consumption (economy) – combined 10.2-10.7 l/100 km
23.06 – 21.98 US mpg
27.69 – 26.4 UK mpg
9.8 – 9.35 km/l
Fuel Type Petrol (Gasoline)
Emission standard Tier3 Bin70/LEV3-ULEV70
Weight-to-power ratio 7.1 kg/Hp, 140.1 Hp/tonne
Weight-to-torque ratio 5.8 kg/Nm, 173.2 Nm/tonne
Engine specs
Power 284 Hp @ 6400 rpm.
Power per litre 81.2 Hp/l
Torque 351 Nm @ 4800 rpm.
258.88 lb.-ft. @ 4800 rpm.
Maximum engine speed 6600 rpm.
Engine layout Front, Transverse
Engine Model/Code VQ35DD
Engine displacement 3498 cm3
213.46 cu. in.
Number of cylinders 6
Engine configuration V-engine
Cylinder Bore 96 mm
3.78 in.
Piston Stroke 81 mm
3.19 in.
Compression ratio 11:1
Number of valves per cylinder 4
Fuel injection system Direct injection
Engine aspiration Naturally aspirated engine
Valvetrain DOHC, CVTCS
Engine oil capacity 4.8 l
5.07 US qt | 4.22 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 11.6 l
12.26 US qt | 10.21 UK qt
Engine systems Start & Stop System

Space, Volume and weights
Kerb Weight 2027-2098 kg
4468.77 – 4625.3 lbs.
Max. weight 2676-2750 kg
5899.57 – 6062.71 lbs.
Max load 649-652 kg
1430.8 – 1437.41 lbs.
Trunk (boot) space – minimum 470 l
16.6 cu. ft.
Trunk (boot) space – maximum 2280 l
80.52 cu. ft.
Fuel tank capacity 70 l
18.49 US gal | 15.4 UK gal
Permitted trailer load with brakes (12%) 2722 kg
6000.98 lbs.
Dimensions
Length 5022 mm
197.72 in.
Width 1979 mm
77.91 in.
Height 1796 mm
70.71 in.
Wheelbase 2901 mm
114.21 in.
Front track 1699 mm
66.89 in.
Rear (Back) track 1699 mm
66.89 in.
Ride height (ground clearance) 180 mm
7.09 in.
Drag coefficient (Cd) 0.324
Approach angle 16.1°
Departure angle 15.6°
Ramp-over (brakeover) angle 20.9°
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels permanently, and the rear wheels are driven through an electrically or mechanically operated clutch if necessary.
Drive wheel All wheel drive (4×4)
Number of gears and type of gearbox 9 gears, automatic transmission
Front suspension Spring Strut, Transverse stabilizer
Rear suspension Independent multi-link suspension, Transverse stabilizer
Front brakes Ventilated discs, 350×30 mm
Rear brakes Ventilated discs, 330×16 mm
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 255/50 R20
