Specifications: Nissan Patrol V 5-door (Y61, facelift 2004) 4.5 (197 Hp) 4×4 2004, 2005, 2006, 2007, 2008, 2009, 2010

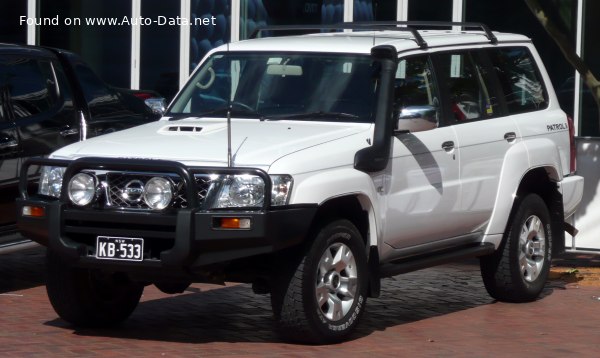

2005 Nissan Patrol V 5-door (Y61, facelift 2004) - Photo 1

Nissan Patrol V 5-door (Y61, facelift 2004) 4.5 (197 Hp) 4×4 – Full specifications
General information
Brand Nissan
Model Patrol
Generation Patrol V 5-door (Y61, facelift 2004)
Modification (Engine) 4.5 (197 Hp) 4×4
Start of production 2004 year
End of production 2010 year
Powertrain Architecture Internal Combustion engine
Body type Off-road vehicle
Seats 7
Doors 5
Performance specs
Fuel Type Petrol (Gasoline)
Weight-to-power ratio 11.6 kg/Hp, 85.8 Hp/tonne
Weight-to-torque ratio 6.6 kg/Nm, 152.5 Nm/tonne
Engine specs
Power 197 Hp @ 4400 rpm.
Power per litre 44 Hp/l
Torque 350 Nm @ 3600 rpm.
258.15 lb.-ft. @ 3600 rpm.
Engine layout Front, Longitudinal
Engine Model/Code TB45E
Engine displacement 4479 cm3
273.33 cu. in.
Number of cylinders 6
Engine configuration Inline
Cylinder Bore 99.5 mm
3.92 in.
Piston Stroke 96 mm
3.78 in.
Compression ratio 8.5:1
Number of valves per cylinder 2
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Valvetrain OHV
Engine oil capacity 7.6 l
8.03 US qt | 6.69 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 11 l
11.62 US qt | 9.68 UK qt

Space, Volume and weights
Kerb Weight 2295-2405 kg
5059.61 – 5302.12 lbs.
Max. weight 3080 kg
6790.24 lbs.
Max load 675-785 kg
1488.12 – 1730.63 lbs.
Fuel tank capacity 95 l
25.1 US gal | 20.9 UK gal
Max. roof load 100 kg
220.46 lbs.
Dimensions
Length 5080 mm
200 in.
Width 1940 mm
76.38 in.
Height 1855 mm
73.03 in.
Wheelbase 2970 mm
116.93 in.
Front track 1555 mm
61.22 in.
Rear (Back) track 1575 mm
62.01 in.
Ride height (ground clearance) 215 mm
8.46 in.
Minimum turning circle (turning diameter) 12.2 m
40.03 ft.
Approach angle 37°
Departure angle 31°
Ramp-over (brakeover) angle 27°
Climb angle 38.7°
Wading depth 700 mm
27.56 in.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the rear wheels permanently, and the front wheels are driven through an electrically or mechanically operated clutch if necessary.
Drive wheel All wheel drive (4×4)
Number of gears and type of gearbox 5 gears, manual transmission
Front suspension Coil spring, Rigid axle suspension, Transverse stabilizer
Rear suspension Rigid axle suspension, Transverse stabilizer, Coil spring
Front brakes Ventilated discs
Rear brakes Drum
Assisting systems ABS (Anti-lock braking system)
Steering type Cone worm with recirculation balls
Power steering Hydraulic Steering
Tires size 235/80 R16
Wheel rims size 6J x 16
