Specifications: Nissan Patrol VI (Y62) 5.6 V8 (317 Hp) 4×4 Automatic 2010, 2011, 2012, 2013, 2014

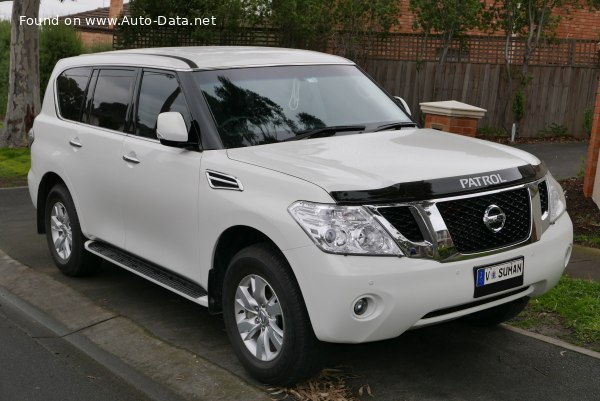

2010 Nissan Patrol VI (Y62) - Photo 1

Nissan Patrol VI (Y62) 5.6 V8 (317 Hp) 4×4 Automatic – Full specifications
General information
Brand Nissan
Model Patrol
Generation Patrol VI (Y62)
Modification (Engine) 5.6 V8 (317 Hp) 4×4 Automatic
Start of production 2010 year
End of production 2014 year
Powertrain Architecture Internal Combustion engine
Body type SUV
Seats 8
Doors 5
Performance specs
Fuel Type Petrol (Gasoline)
Weight-to-power ratio 8.3 kg/Hp, 119.8 Hp/tonne
Weight-to-torque ratio 5 kg/Nm, 198.9 Nm/tonne
Engine specs
Power 317 Hp @ 5200 rpm.
Power per litre 57.1 Hp/l
Torque 526 Nm @ 3400 rpm.
387.96 lb.-ft. @ 3400 rpm.
Engine layout Front, Longitudinal
Engine Model/Code VK56DE
Engine displacement 5552 cm3
338.8 cu. in.
Number of cylinders 8
Engine configuration V-engine
Cylinder Bore 98 mm
3.86 in.
Piston Stroke 92 mm
3.62 in.
Compression ratio 9.8:1
Number of valves per cylinder 4
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Valvetrain DOHC, CVTCS
Engine oil capacity 6.5 l
6.87 US qt | 5.72 UK qt
Engine oil specification Log in to see.Log in to see.

Space, Volume and weights
Kerb Weight 2645 kg
5831.23 lbs.
Max. weight 3450 kg
7605.95 lbs.
Max load 805 kg
1774.72 lbs.
Fuel tank capacity 100 l
26.42 US gal | 22 UK gal
Dimensions
Length 5140 mm
202.36 in.
Width 1995 mm
78.54 in.
Height 1940 mm
76.38 in.
Wheelbase 3075 mm
121.06 in.
Front track 1695-1706 mm
66.73 – 67.17 in.
Rear (Back) track 1695-1706 mm
66.73 – 67.17 in.
Ride height (ground clearance) 275 mm
10.83 in.
Minimum turning circle (turning diameter) 12.5 m
41.01 ft.
Approach angle 35°
Departure angle 26°
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives permanently the four wheels of the vehicle.
Drive wheel All wheel drive (4×4)
Number of gears and type of gearbox 5 gears, automatic transmission
Front suspension Double wishbone
Rear suspension Double wishbone
Front brakes Ventilated discs
Rear brakes Ventilated discs
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Hydraulic Steering
Tires size 265/70 R18; 275/60 R20
Wheel rims size 8J x 18; 8J x 20
