Specifications: Nissan Patrol VI (Y62, facelift 2019) 5.6 V8 (400 Hp) 4×4 Automatic 2019, 2020, 2021, 2022, 2023, 2024, 2025

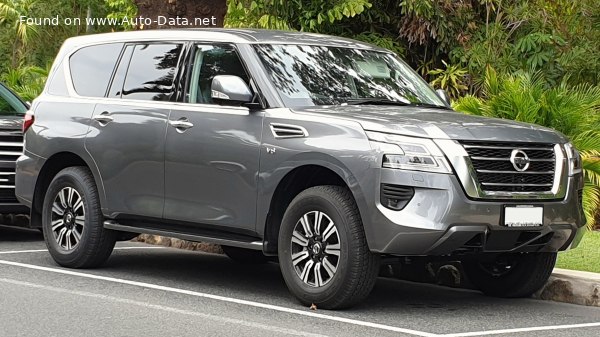

2020 Nissan Patrol VI (Y62, facelift 2019) - Photo 1

Nissan Patrol VI (Y62, facelift 2019) 5.6 V8 (400 Hp) 4×4 Automatic – Full specifications
General information
Brand Nissan
Model Patrol
Generation Patrol VI (Y62, facelift 2019)
Modification (Engine) 5.6 V8 (400 Hp) 4×4 Automatic
Start of production 2019 year
Powertrain Architecture Internal Combustion engine
Body type SUV
Seats 8
Doors 5
Performance specs
Fuel consumption (economy) – combined 14.4 l/100 km
16.33 US mpg
19.62 UK mpg
6.94 km/l
Fuel Type Petrol (Gasoline)
Maximum speed 200 km/h
124.27 mph
Weight-to-power ratio 7.1 kg/Hp, 141.3 Hp/tonne
Weight-to-torque ratio 5.1 kg/Nm, 197.9 Nm/tonne
Engine specs
Power 400 Hp @ 5800 rpm.
Power per litre 72 Hp/l
Torque 560 Nm @ 4000 rpm.
413.03 lb.-ft. @ 4000 rpm.
Engine layout Front, Longitudinal
Engine Model/Code VK56VD
Engine displacement 5552 cm3
338.8 cu. in.
Number of cylinders 8
Engine configuration V-engine
Cylinder Bore 98 mm
3.86 in.
Piston Stroke 92 mm
3.62 in.
Compression ratio 10.8:1
Number of valves per cylinder 4
Fuel injection system Direct injection
Engine aspiration Naturally aspirated engine
Valvetrain DOHC, CVTCS, VVEL
Engine oil capacity 6.5 l
6.87 US qt | 5.72 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 14.6 l
15.43 US qt | 12.85 UK qt

Space, Volume and weights
Kerb Weight 2830 kg
6239.08 lbs.
Max. weight 3450 kg
7605.95 lbs.
Max load 620 kg
1366.87 lbs.
Trunk (boot) space – minimum 550 l
19.42 cu. ft.
Trunk (boot) space – maximum 3170 l
111.95 cu. ft.
Fuel tank capacity 140 l
36.98 US gal | 30.8 UK gal
Max. roof load 100 kg
220.46 lbs.
Permitted trailer load with brakes (12%) 3500 kg
7716.18 lbs.
Permitted trailer load without brakes 750 kg
1653.47 lbs.
Permitted towbar download 140 kg
308.65 lbs.
Dimensions
Length 5140 mm
202.36 in.
Width 1995 mm
78.54 in.
Width including mirrors 2253 mm
88.7 in.
Height 1940 mm
76.38 in.
Wheelbase 3075 mm
121.06 in.
Front track 1695 mm
66.73 in.
Rear (Back) track 1695 mm
66.73 in.
Ride height (ground clearance) 283 mm
11.14 in.
Minimum turning circle (turning diameter) 12.5 m
41.01 ft.
Approach angle 35°
Departure angle 26°
Ramp-over (brakeover) angle 24°
Climb angle 45°
Wading depth 700 mm
27.56 in.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives permanently the four wheels of the vehicle.
Drive wheel All wheel drive (4×4)
Number of gears and type of gearbox 7 gears, automatic transmission
Front suspension Coil spring, Double wishbone
Rear suspension Double wishbone, Coil spring
Front brakes Ventilated discs
Rear brakes Ventilated discs
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Hydraulic Steering
Tires size 265/70 R18
Wheel rims size 8J x 18
