Specifications: Nissan Qashqai II (J11) 2.0 (141 Hp) AWD Xtronic 2017, 2018, 2019

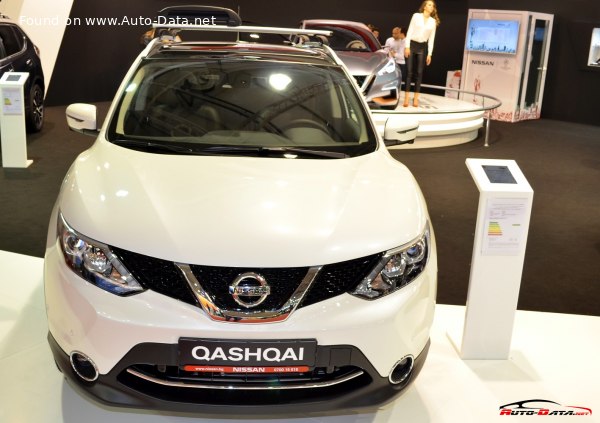

2013 Nissan Qashqai II (J11) - Photo 1

Nissan Qashqai II (J11) 2.0 (141 Hp) AWD Xtronic – Full specifications
General information
Brand Nissan
Model Qashqai
Generation Qashqai II (J11)
Modification (Engine) 2.0 (141 Hp) AWD Xtronic
Start of production 2017 year
End of production 2019 year
Powertrain Architecture Internal Combustion engine
Body type SUV, Crossover
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – urban 9.1 l/100 km
25.85 US mpg
31.04 UK mpg
10.99 km/l
Fuel consumption (economy) – extra urban 7.5 l/100 km
31.36 US mpg
37.66 UK mpg
13.33 km/l
Fuel consumption (economy) – combined 8.4 l/100 km
28 US mpg
33.63 UK mpg
11.9 km/l
Fuel Type Petrol (Gasoline)
Emission standard LEV3 ULEV70
Weight-to-power ratio 10.7 kg/Hp, 93.1 Hp/tonne
Weight-to-torque ratio 7.6 kg/Nm, 131.4 Nm/tonne
Engine specs
Power 141 Hp @ 6000 rpm.
Power per litre 70.6 Hp/l
Torque 199 Nm @ 4400 rpm.
146.77 lb.-ft. @ 4400 rpm.
Maximum engine speed 6400 rpm.
Engine layout Front, Transverse
Engine Model/Code MR20DD
Engine displacement 1997 cm3
121.86 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 84 mm
3.31 in.
Piston Stroke 90.1 mm
3.55 in.
Compression ratio 11.2:1
Number of valves per cylinder 4
Fuel injection system Direct injection
Engine aspiration Naturally aspirated engine
Valvetrain DOHC, CVTCS
Engine oil capacity 3.8 l
4.02 US qt | 3.34 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 8.7 l
9.19 US qt | 7.65 UK qt
Engine systems Start & Stop System

Space, Volume and weights
Kerb Weight 1515-1559 kg
3340 – 3437.01 lbs.
Max. weight 2035 kg
4486.41 lbs.
Max load 476-520 kg
1049.4 – 1146.4 lbs.
Trunk (boot) space – minimum 564 l
19.92 cu. ft.
Trunk (boot) space – maximum 1509 l
53.29 cu. ft.
Fuel tank capacity 55 l
14.53 US gal | 12.1 UK gal
Max. roof load 75 kg
165.35 lbs.
Dimensions
Length 4380 mm
172.44 in.
Width 1838 mm
72.36 in.
Height 1607 mm
63.27 in.
Wheelbase 2646 mm
104.17 in.
Front track 1585 mm
62.4 in.
Rear (Back) track 1580 mm
62.2 in.
Ride height (ground clearance) 187 mm
7.36 in.
Drag coefficient (Cd) 0.33
Minimum turning circle (turning diameter) 11.5 m
37.73 ft.
Approach angle 17.3°
Departure angle 28.2°
Ramp-over (brakeover) angle 17.7°
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels permanently, and the rear wheels are driven through an electrically or mechanically operated clutch if necessary.
Drive wheel All wheel drive (4×4)
Number of gears and type of gearbox automatic transmission Xtronic
Front suspension Independent, type McPherson with coil spring and anti-roll bar
Rear suspension Independent multi-link spring suspension with stabilizer
Front brakes Ventilated discs, 296×26 mm
Rear brakes Disc, 292×16 mm
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 215/65 R16; 215/60 R17; 225/45 R19
Wheel rims size 6.5J x 16; 7J x 17; 7J x 19
