Specifications: Nissan Sentra VII (B17) 1.8 (130 Hp) 2012, 2013, 2014, 2015

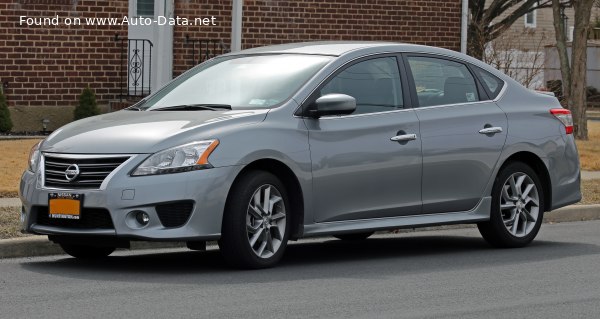

2013 Nissan Sentra VII (B17) - Photo 1

Nissan Sentra VII (B17) 1.8 (130 Hp) – Full specifications
General information
Brand Nissan
Model Sentra
Generation Sentra VII (B17)
Modification (Engine) 1.8 (130 Hp)
Start of production 2012 year
End of production 2015 year
Powertrain Architecture Internal Combustion engine
Body type Sedan
Seats 5
Doors 4
Performance specs
Fuel consumption (economy) – urban (EPA) 8.7 l/100 km
27.04 US mpg
32.47 UK mpg
11.49 km/l
Fuel consumption (economy) – extra urban (EPA) 6.5 l/100 km
36.19 US mpg
43.46 UK mpg
15.38 km/l
Fuel consumption (economy) – combined (EPA) 7.8 l/100 km
30.16 US mpg
36.22 UK mpg
12.82 km/l
Fuel Type Petrol (Gasoline)
Emission standard LEV2-LEV
Weight-to-power ratio 9.8 kg/Hp, 101.6 Hp/tonne
Weight-to-torque ratio 7.4 kg/Nm, 135.9 Nm/tonne
Engine specs
Power 130 Hp @ 6000 rpm.
Power per litre 72.3 Hp/l
Torque 174 Nm @ 3600 rpm.
128.34 lb.-ft. @ 3600 rpm.
Maximum engine speed 6400 rpm.
Engine layout Front, Transverse
Engine Model/Code MRA8DE
Engine displacement 1797 cm3
109.66 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 79.7 mm
3.14 in.
Piston Stroke 90.1 mm
3.55 in.
Compression ratio 9.9:1
Number of valves per cylinder 4
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Valvetrain DOHC, CVTCS
Engine oil capacity 4 l
4.23 US qt | 3.52 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 6.6 l
6.97 US qt | 5.81 UK qt

Space, Volume and weights
Kerb Weight 1280 kg
2821.92 lbs.
Max. weight 1691 kg
3728.02 lbs.
Max load 411 kg
906.1 lbs.
Trunk (boot) space – minimum 428 l
15.11 cu. ft.
Fuel tank capacity 50 l
13.21 US gal | 11 UK gal
Dimensions
Length 4610 mm
181.5 in.
Width 1760 mm
69.29 in.
Height 1495 mm
58.86 in.
Wheelbase 2700 mm
106.3 in.
Front track 1540 mm
60.63 in.
Rear (Back) track 1540 mm
60.63 in.
Front overhang 895 mm
35.24 in.
Rear overhang 1015 mm
39.96 in.
Ride height (ground clearance) 165 mm
6.5 in.
Drag coefficient (Cd) 0.29
Minimum turning circle (turning diameter) 10.4 m
34.12 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 6 gears, manual transmission
Front suspension Independent, type McPherson with coil spring and anti-roll bar
Rear suspension Transverse stabilizer, Torsion
Front brakes Ventilated discs, 279.4×22.86 mm
Rear brakes Drum, 228.6 mm
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 195/60 R16; 205/60 R16; 205/50 R17
Wheel rims size 6.5J x 16; 6.5J x 17
