Specifications: Nissan Sentra VII (B17, facelift 2016) 1.8 (130 Hp) 2016, 2017, 2018, 2019

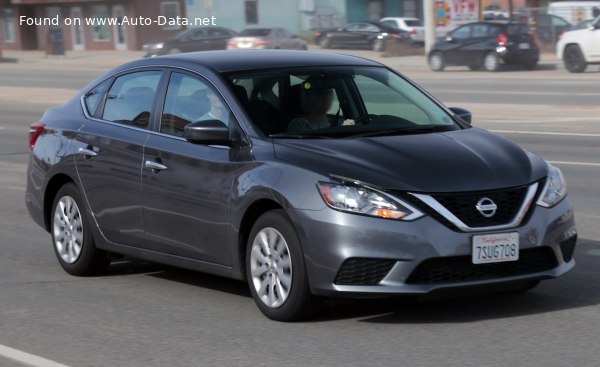

2016 Nissan Sentra VII (B17, facelift 2016) - Photo 1

Nissan Sentra VII (B17, facelift 2016) 1.8 (130 Hp) – Full specifications
General information
Brand Nissan
Model Sentra
Generation Sentra VII (B17, facelift 2016)
Modification (Engine) 1.8 (130 Hp)
Start of production 2016 year
End of production 2019 year
Powertrain Architecture Internal Combustion engine
Body type Sedan
Seats 5
Doors 4
Performance specs
Fuel consumption (economy) – urban 8.7 l/100 km
27.04 US mpg
32.47 UK mpg
11.49 km/l
Fuel consumption (economy) – extra urban 6.7 l/100 km
35.11 US mpg
42.16 UK mpg
14.93 km/l
Fuel consumption (economy) – combined 7.8 l/100 km
30.16 US mpg
36.22 UK mpg
12.82 km/l
Fuel Type Petrol (Gasoline)
Weight-to-power ratio 9.5 kg/Hp, 105.7 Hp/tonne
Weight-to-torque ratio 7.1 kg/Nm, 141.5 Nm/tonne
Engine specs
Power 130 Hp @ 6000 rpm.
Power per litre 72.3 Hp/l
Torque 174 Nm @ 3600 rpm.
128.34 lb.-ft. @ 3600 rpm.
Maximum engine speed 6400 rpm.
Engine layout Front, Transverse
Engine Model/Code MRA8DE
Engine displacement 1798 cm3
109.72 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 79.7 mm
3.14 in.
Piston Stroke 90.1 mm
3.55 in.
Compression ratio 9.9:1
Number of valves per cylinder 4
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Valvetrain CVTCS
Engine oil capacity 4 l
4.23 US qt | 3.52 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 6.6 l
6.97 US qt | 5.81 UK qt

Space, Volume and weights
Kerb Weight 1230 kg
2711.69 lbs.
Max. weight 1734 kg
3822.82 lbs.
Max load 504 kg
1111.13 lbs.
Trunk (boot) space – minimum 428 l
15.11 cu. ft.
Fuel tank capacity 50 l
13.21 US gal | 11 UK gal
Dimensions
Length 4625 mm
182.09 in.
Width 1760 mm
69.29 in.
Height 1496 mm
58.9 in.
Wheelbase 2700 mm
106.3 in.
Front track 1529 mm
60.2 in.
Rear (Back) track 1529 mm
60.2 in.
Ride height (ground clearance) 166 mm
6.54 in.
Drag coefficient (Cd) 0.29
Minimum turning circle (turning diameter) 10.6 m
34.78 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 6 gears, manual transmission
Front suspension Independent coil spring
Rear suspension Torsion
Front brakes Ventilated discs
Rear brakes Drum
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 205/55 R16
Wheel rims size 6.5J x 16
