Specifications: Nissan Serena (C24) 2.5 TDi 16V (150 Hp) 1999, 2000, 2001, 2002, 2003, 2004, 2005

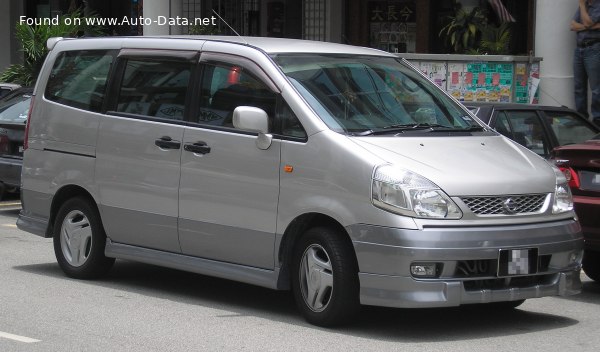

1999 Nissan Serena (C24) - Photo 1

Nissan Serena (C24) 2.5 TDi 16V (150 Hp) – Full specifications
General information
Brand Nissan
Model Serena
Generation Serena (C24)
Modification (Engine) 2.5 TDi 16V (150 Hp)
Start of production June, 1999 year
End of production 2005 year
Powertrain Architecture Internal Combustion engine
Body type Minivan
Seats 8
Doors 5
Performance specs
Fuel consumption (economy) – combined 7.8 l/100 km
30.16 US mpg
36.22 UK mpg
12.82 km/l
Fuel Type Diesel
Acceleration 0 – 100 km/h 13 sec
Acceleration 0 – 62 mph 13 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 12.4 sec
Maximum speed 170 km/h
105.63 mph
Weight-to-power ratio 11.5 kg/Hp, 87.2 Hp/tonne
Weight-to-torque ratio 6.1 kg/Nm, 162.8 Nm/tonne
Engine specs
Power 150 Hp @ 4000 rpm.
Power per litre 60.3 Hp/l
Torque 280 Nm @ 1800 rpm.
206.52 lb.-ft. @ 1800 rpm.
Engine layout Middle, Longitudinal
Engine displacement 2488 cm3
151.83 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 89 mm
3.5 in.
Piston Stroke 100 mm
3.94 in.
Compression ratio 17.5:1
Number of valves per cylinder 4
Fuel injection system Diesel Commonrail
Engine aspiration Turbocharger
Valvetrain OHC

Space, Volume and weights
Kerb Weight 1720 kg
3791.95 lbs.
Max. weight 2160 kg
4761.98 lbs.
Max load 440 kg
970.03 lbs.
Trunk (boot) space – minimum 520 l
18.36 cu. ft.
Fuel tank capacity 60 l
15.85 US gal | 13.2 UK gal
Dimensions
Length 4520 mm
177.95 in.
Width 1695 mm
66.73 in.
Height 1830 mm
72.05 in.
Wheelbase 2695 mm
106.1 in.
Front track 1480 mm
58.27 in.
Rear (Back) track 1465 mm
57.68 in.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 4 gears, automatic transmission
Front suspension Coil spring
Rear suspension Coil spring
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Hydraulic Steering
Tires size 195/65 R15
