Specifications: Nissan Skyline XIII (HV37, facelift 2017) 3.5 V6 (364 Hp) Hybrid Automatic 2017, 2018, 2019

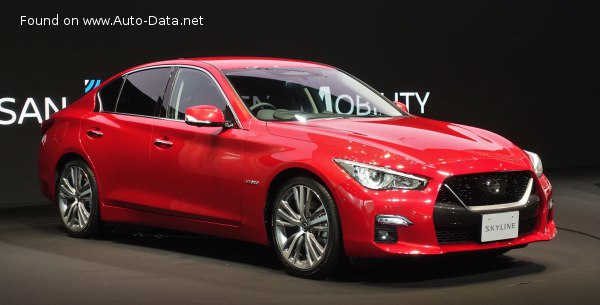

2017 Nissan Skyline XIII (HV37, facelift 2017) - Photo 1

Nissan Skyline XIII (HV37, facelift 2017) 3.5 V6 (364 Hp) Hybrid Automatic – Full specifications
General information
Brand Nissan
Model Skyline
Generation Skyline XIII (HV37, facelift 2017)
Modification (Engine) 3.5 V6 (364 Hp) Hybrid Automatic
Start of production December, 2017 year
End of production 2019 year
Powertrain Architecture FHEV (Full Hybrid Electric Vehicle)
Body type Sedan
Seats 5
Doors 4
Performance specs
Fuel consumption (economy) – combined 6.9 l/100 km
34.09 US mpg
40.94 UK mpg
14.49 km/l
Fuel Type Petrol (Gasoline)
Weight-to-power ratio 5.1 kg/Hp, 197.8 Hp/tonne
Weight-to-torque ratio 3.2 kg/Nm, 309.8 Nm/tonne
Electric cars and hybrids specs
Battery technology Lithium-ion (Li-Ion)
Electric motor 1
Electric motor power 68 Hp @ 1770-2000 rpm.
Electric motor Torque 290 Nm @ 1770 rpm.

213.89 lb.-ft. @ 1770 rpm.
Electric motor location Between the combustion engine and the transmission
System power 364 Hp @ 6500 rpm.
System torque 570 Nm @ 2000 rpm.
420.41 lb.-ft. @ 2000 rpm.
Internal combustion engine specs
Power 306 Hp @ 6800 rpm.
Power per litre 87.5 Hp/l
Torque 350 Nm @ 5000 rpm.
258.15 lb.-ft. @ 5000 rpm.
Engine layout Front, Longitudinal
Engine Model/Code VQ35HR
Engine displacement 3498 cm3
213.46 cu. in.
Number of cylinders 6
Engine configuration V-engine
Cylinder Bore 95.5 mm
3.76 in.
Piston Stroke 81.4 mm
3.2 in.
Compression ratio 10.6:1
Number of valves per cylinder 4
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Valvetrain DOHC
Engine oil capacity 4.9 l
5.18 US qt | 4.31 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 9.8 l
10.36 US qt | 8.62 UK qt

Space, Volume and weights
Kerb Weight 1840 kg
4056.51 lbs.
Max. weight 2115 kg
4662.78 lbs.
Max load 275 kg
606.27 lbs.
Fuel tank capacity 70 l
18.49 US gal | 15.4 UK gal
Dimensions
Length 4810 mm
189.37 in.
Width 1820 mm
71.65 in.
Height 1440 mm
56.69 in.
Wheelbase 2850 mm
112.2 in.
Front track 1535-1545 mm
60.43 – 60.83 in.
Rear (Back) track 1560-1570 mm
61.42 – 61.81 in.
Ride height (ground clearance) 130 mm
5.12 in.
Minimum turning circle (turning diameter) 11.2 m
36.75 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) and electric motor drive the rear wheels of the car with the ability to work in full electric or mixed mode.
Drive wheel Rear wheel drive
Number of gears and type of gearbox 7 gears, automatic transmission
Front suspension Double wishbone
Rear suspension Independent multi-link suspension
Front brakes Ventilated discs
Rear brakes Ventilated discs
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 225/50 R18; 245/40 R19
Wheel rims size 18; 19
