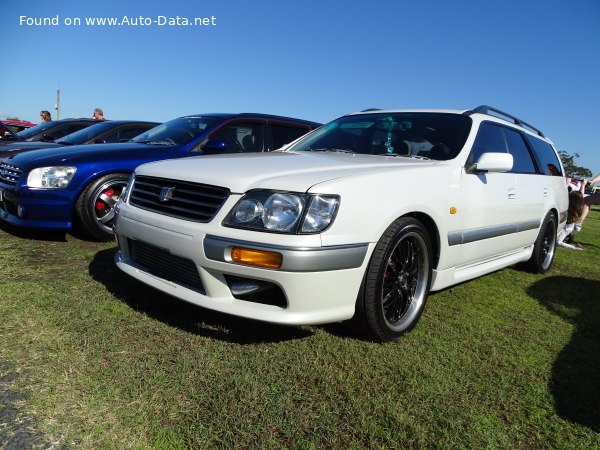

1996 Nissan Stagea - Photo 1

Nissan Stagea 2.5 (190 Hp) – Full specifications
General information
Brand Nissan
Model Stagea
Generation Stagea
Modification (Engine) 2.5 (190 Hp)
Start of production 1996 year
End of production 2001 year
Powertrain Architecture Internal Combustion engine
Body type Station wagon (estate)
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – urban 15 l/100 km
15.68 US mpg
18.83 UK mpg
6.67 km/l
Fuel consumption (economy) – extra urban 9 l/100 km
26.13 US mpg
31.39 UK mpg
11.11 km/l
Fuel consumption (economy) – combined 15 l/100 km
15.68 US mpg
18.83 UK mpg
6.67 km/l
Fuel Type Petrol (Gasoline)
Maximum speed 210 km/h
130.49 mph
Weight-to-power ratio 7.7 kg/Hp, 129.3 Hp/tonne
Weight-to-torque ratio 6.4 kg/Nm, 156.5 Nm/tonne
Engine specs
Power 190 Hp @ 6400 rpm.
Power per litre 76 Hp/l
Torque 230 Nm @ 4800 rpm.
169.64 lb.-ft. @ 4800 rpm.
Engine layout Front, Longitudinal
Engine displacement 2499 cm3
152.5 cu. in.
Number of cylinders 6
Engine configuration Inline
Cylinder Bore 86 mm
3.39 in.
Piston Stroke 71.7 mm
2.82 in.
Compression ratio 10:1
Number of valves per cylinder 4
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Valvetrain DOHC

Space, Volume and weights
Kerb Weight 1470 kg
3240.8 lbs.
Fuel tank capacity 68 l
17.96 US gal | 14.96 UK gal
Dimensions
Length 4800 mm
188.98 in.
Width 1755 mm
69.09 in.
Height 1490 mm
58.66 in.
Wheelbase 2720 mm
107.09 in.
Front track 1460 mm
57.48 in.
Rear (Back) track 1515 mm
59.65 in.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 5 gears, manual transmission
Front suspension Coil spring
Rear suspension Coil spring
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Hydraulic Steering
Tires size 205/60 R15
