Specifications: Nissan Tino (V10) 1.5 i 16V (105 Hp) Automatic 1999, 2000, 2001, 2002

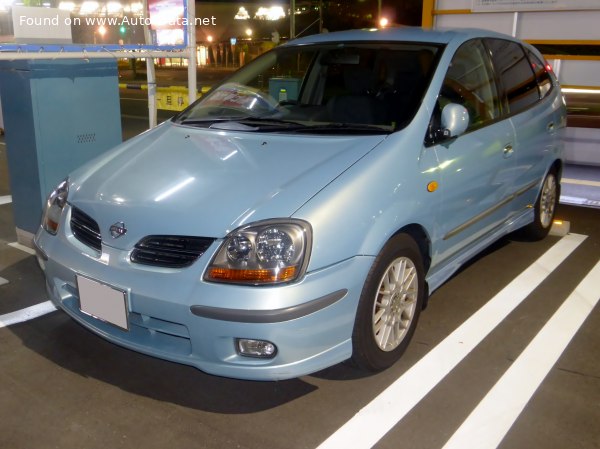

1999 Nissan Tino (V10) - Photo 1

Nissan Tino (V10) 1.5 i 16V (105 Hp) Automatic – Full specifications
General information
Brand Nissan
Model Tino
Generation Tino (V10)
Modification (Engine) 1.5 i 16V (105 Hp) Automatic
Start of production 1999 year
End of production 2002 year
Powertrain Architecture Internal Combustion engine
Body type Minivan
Seats 5
Doors 5
Performance specs
Fuel Type Petrol (Gasoline)
Weight-to-power ratio 15.3 kg/Hp, 65.2 Hp/tonne
Weight-to-torque ratio 11.9 kg/Nm, 83.9 Nm/tonne
Engine specs
Power 105 Hp @ 6000 rpm.
Power per litre 70.1 Hp/l
Torque 135 Nm @ 4400 rpm.
99.57 lb.-ft. @ 4400 rpm.
Engine layout Front, Transverse
Engine displacement 1497 cm3
91.35 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 73.6 mm
2.9 in.
Piston Stroke 88 mm
3.46 in.
Compression ratio 9.9:1
Number of valves per cylinder 4
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Valvetrain DOHC

Space, Volume and weights
Kerb Weight 1610 kg
3549.44 lbs.
Max. weight 1880 kg
4144.69 lbs.
Max load 270 kg
595.25 lbs.
Trunk (boot) space – minimum 440 l
15.54 cu. ft.
Trunk (boot) space – maximum 1030 l
36.37 cu. ft.
Fuel tank capacity 50 l
13.21 US gal | 11 UK gal
Dimensions
Length 4270 mm
168.11 in.
Width 1760 mm
69.29 in.
Height 1610 mm
63.39 in.
Wheelbase 2535 mm
99.8 in.
Front track 1535 mm
60.43 in.
Rear (Back) track 1510 mm
59.45 in.
Minimum turning circle (turning diameter) 9.8 m
32.15 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 4 gears, automatic transmission
Front suspension Coil spring
Rear suspension Coil spring
Front brakes Disc
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Hydraulic Steering
Tires size 175/70 R13
Wheel rims size 13
