Specifications: Nissan Titan II Crew Cab (facelift 2020) 5.6 V8 (400 Hp) 4WD Automatic 5 seats 2020, 2021, 2022, 2023, 2024, 2025

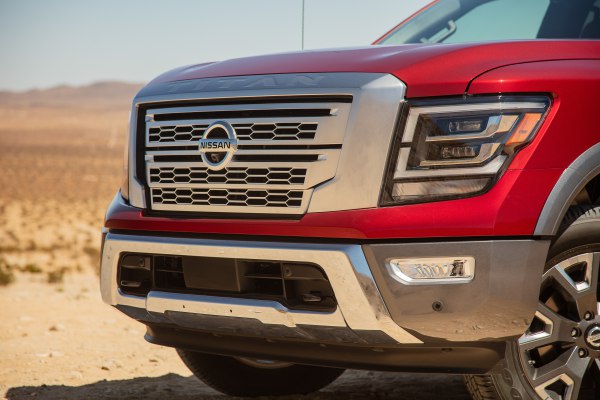

2020 Nissan Titan II Crew Cab (facelift 2020) - Photo 1

Nissan Titan II Crew Cab (facelift 2020) 5.6 V8 (400 Hp) 4WD Automatic 5 seats – Full specifications
General information
Brand Nissan
Model Titan
Generation Titan II Crew Cab (facelift 2020)
Modification (Engine) 5.6 V8 (400 Hp) 4WD Automatic 5 seats
Start of production 2020 year
Powertrain Architecture Internal Combustion engine
Body type Pick-up
Seats 5
Doors 4
Performance specs
Fuel consumption (economy) – urban 15.7 l/100 km
14.98 US mpg
17.99 UK mpg
6.37 km/l
Fuel consumption (economy) – extra urban 11.2 l/100 km
21 US mpg
25.22 UK mpg
8.93 km/l
Fuel consumption (economy) – combined 13.1 l/100 km
17.96 US mpg
21.56 UK mpg
7.63 km/l
Fuel Type Petrol (Gasoline)
Emission standard LEV3-ULEV200
Weight-to-power ratio 6.7 kg/Hp, 149.5 Hp/tonne
Weight-to-torque ratio 4.8 kg/Nm, 209.3 Nm/tonne
Engine specs
Power 400 Hp @ 5800 rpm.
Power per litre 72 Hp/l
Torque 560 Nm @ 4000 rpm.
413.03 lb.-ft. @ 4000 rpm.
Maximum engine speed 6000 rpm.
Engine layout Front, Longitudinal
Engine Model/Code VK56VD
Engine displacement 5552 cm3
338.8 cu. in.
Number of cylinders 8
Engine configuration V-engine
Cylinder Bore 98 mm
3.86 in.
Piston Stroke 92 mm
3.62 in.
Compression ratio 11.2:1
Number of valves per cylinder 4
Fuel injection system Direct injection
Engine aspiration Naturally aspirated engine
Valvetrain VVWL, CVTS
Engine oil capacity 6.5 l
6.87 US qt | 5.72 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 13.4 l
14.16 US qt | 11.79 UK qt

Space, Volume and weights
Kerb Weight 2675-2685 kg
5897.37 – 5919.41 lbs.
Max. weight 3311 kg
7299.51 lbs.
Max load 626-636 kg
1380.09 – 1402.14 lbs.
Fuel tank capacity 98 l
25.89 US gal | 21.56 UK gal
Permitted trailer load with brakes (12%) 4178 kg
9210.91 lbs.
Dimensions
Length 5796 mm
228.19 in.
Width 2019 mm
79.49 in.
Height 1961 mm
77.2 in.
Wheelbase 3551 mm
139.8 in.
Front track 1730 mm
68.11 in.
Rear (Back) track 1730 mm
68.11 in.
Ride height (ground clearance) 257 mm
10.12 in.
Minimum turning circle (turning diameter) 14.6 m
47.9 ft.
Approach angle 20°
Departure angle 22.9°
Ramp-over (brakeover) angle 21.7°
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the rear wheels permanently, and the front wheels are driven through an electrically or mechanically operated clutch if necessary.
Drive wheel All wheel drive (4×4)
Number of gears and type of gearbox 9 gears, automatic transmission
Front suspension Double wishbone
Rear suspension Leaf spring
Front brakes Ventilated discs, 350 mm
Rear brakes Ventilated discs, 345 mm
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Tires size 275/60 R20
Wheel rims size 8J x 20
