Specifications: Nissan Wingroad (Y10) 1.5 16V (105 Hp) Automatic 1996, 1997

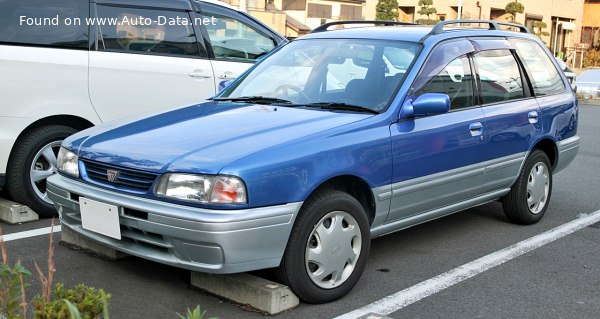

1996 Nissan Wingroad (Y10) - Photo 1

Nissan Wingroad (Y10) 1.5 16V (105 Hp) Automatic – Full specifications
General information
Brand Nissan
Model Wingroad
Generation Wingroad (Y10)
Modification (Engine) 1.5 16V (105 Hp) Automatic
Start of production 1996 year
End of production 1997 year
Powertrain Architecture Internal Combustion engine
Body type Station wagon (estate)
Seats 5
Doors 5
Performance specs
Fuel Type Petrol (Gasoline)
Weight-to-power ratio 10 kg/Hp, 100 Hp/tonne
Weight-to-torque ratio 7.8 kg/Nm, 128.6 Nm/tonne
Engine specs
Power 105 Hp @ 6000 rpm.
Power per litre 70.1 Hp/l
Torque 135 Nm @ 4000 rpm.
99.57 lb.-ft. @ 4000 rpm.
Engine layout Front, Transverse
Engine Model/Code GA15DE
Engine displacement 1498 cm3
91.41 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 73.6 mm
2.9 in.
Piston Stroke 88 mm
3.46 in.
Compression ratio 9.9:1
Number of valves per cylinder 4
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Valvetrain DOHC

Space, Volume and weights
Kerb Weight 1050 kg
2314.85 lbs.
Fuel tank capacity 50 l
13.21 US gal | 11 UK gal
Dimensions
Length 4295 mm
169.09 in.
Width 1665 mm
65.55 in.
Height 1515 mm
59.65 in.
Wheelbase 2400 mm
94.49 in.
Front track 1445 mm
56.89 in.
Rear (Back) track 1445 mm
56.89 in.
Minimum turning circle (turning diameter) 10.4 m
34.12 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 4 gears, automatic transmission
Front suspension Spring Strut
Rear suspension Torsion
Front brakes Ventilated discs
Rear brakes Drum
Tires size 175/65 R14 82H
