Specifications: Nissan X-Trail II (T31) 2.0i 16V (141 Hp) 4×4 CVT 2007, 2008

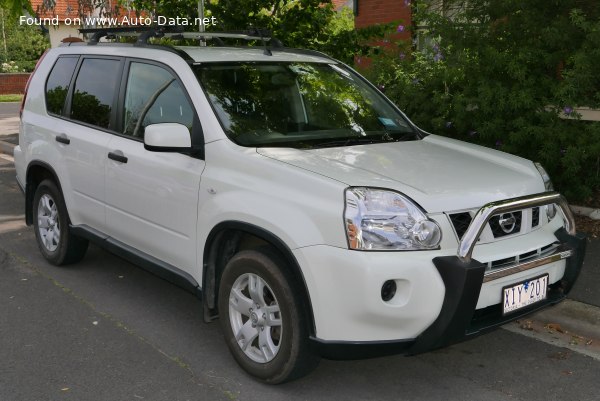

2007 Nissan X-Trail II (T31) - Photo 1

Nissan X-Trail II (T31) 2.0i 16V (141 Hp) 4×4 CVT – Full specifications
General information
Brand Nissan
Model X-Trail
Generation X-Trail II (T31)
Modification (Engine) 2.0i 16V (141 Hp) 4×4 CVT
Start of production 2007 year
End of production 2008 year
Powertrain Architecture Internal Combustion engine
Body type SUV
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – urban 10.8 l/100 km
21.78 US mpg
26.16 UK mpg
9.26 km/l
Fuel consumption (economy) – extra urban 7.2 l/100 km
32.67 US mpg
39.23 UK mpg
13.89 km/l
Fuel consumption (economy) – combined 8.5 l/100 km
27.67 US mpg
33.23 UK mpg
11.76 km/l
CO2 emissions 204 g/km
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 11.9 sec
Acceleration 0 – 62 mph 11.9 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 11.3 sec
Maximum speed 172 km/h
106.88 mph
Emission standard Euro 4
Weight-to-power ratio 10.7 kg/Hp, 93.1 Hp/tonne
Weight-to-torque ratio 7.7 kg/Nm, 129.5 Nm/tonne
Engine specs
Power 141 Hp @ 6000 rpm.
Power per litre 70.6 Hp/l
Torque 196 Nm @ 4800 rpm.
144.56 lb.-ft. @ 4800 rpm.
Engine layout Front, Transverse
Engine Model/Code MR20DE
Engine displacement 1998 cm3
121.93 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 84 mm
3.31 in.
Piston Stroke 90 mm
3.54 in.
Compression ratio 10:1
Number of valves per cylinder 4
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Valvetrain DOHC
Engine oil capacity 4.4 l
4.65 US qt | 3.87 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 7.4 l
7.82 US qt | 6.51 UK qt

Space, Volume and weights
Kerb Weight 1514 kg
3337.8 lbs.
Max. weight 2050 kg
4519.48 lbs.
Max load 536 kg
1181.68 lbs.
Trunk (boot) space – minimum 603 l
21.29 cu. ft.
Trunk (boot) space – maximum 1742 l
61.52 cu. ft.
Fuel tank capacity 65 l
17.17 US gal | 14.3 UK gal
Max. roof load 100 kg
220.46 lbs.
Permitted trailer load with brakes (12%) 1300 kg
2866.01 lbs.
Permitted trailer load without brakes 750 kg
1653.47 lbs.
Permitted towbar download 75 kg
165.35 lbs.
Dimensions
Length 4630 mm
182.28 in.
Width 1785 mm
70.28 in.
Height 1685 mm
66.34 in.
Wheelbase 2630 mm
103.54 in.
Front track 1530 mm
60.24 in.
Rear (Back) track 1535 mm
60.43 in.
Ride height (ground clearance) 200 mm
7.87 in.
Minimum turning circle (turning diameter) 10.8 m
35.43 ft.
Approach angle 29.0°
Departure angle 23.0°
Ramp-over (brakeover) angle 20.0°
Wading depth 450 mm
17.72 in.
Drivetrain, brakes and suspension specs
Drive wheel All wheel drive (4×4)
Number of gears and type of gearbox 1 gears, automatic transmission CVT
Front suspension Independent, type McPherson with coil spring and anti-roll bar
Rear suspension Independent multi-link spring suspension with stabilizer
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 215/60 R17
Wheel rims size 17
