Specifications: Nissan X-Trail IV (T33) 1.5 VC-T (204 Hp) e-POWER Automatic 2022, 2023, 2024, 2025

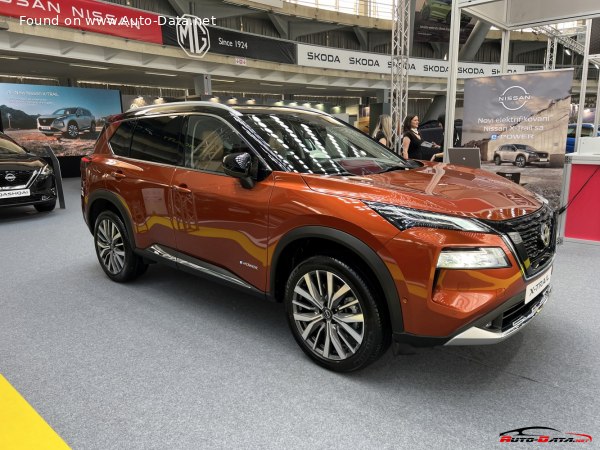

2022 Nissan X-Trail IV (T33) - Photo 1

Nissan X-Trail IV (T33) 1.5 VC-T (204 Hp) e-POWER Automatic – Full specifications
General information
Brand Nissan
Model X-Trail
Generation X-Trail IV (T33)
Modification (Engine) 1.5 VC-T (204 Hp) e-POWER Automatic
Start of production September, 2022 year
Powertrain Architecture FHEV (Full Hybrid Electric Vehicle)
Body type SUV
Seats 5
Doors 5
Performance specs
Combined fuel consumption (WLTP) 5.8-6.2 l/100 km
40.55 – 37.94 US mpg
48.7 – 45.56 UK mpg
17.24 – 16.13 km/l
CO2 emissions (WLTP) 132-141 g/km
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 8 sec
Acceleration 0 – 62 mph 8 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 7.6 sec
Maximum speed 170 km/h
105.63 mph
Emission standard Euro 6d-Full
Weight-to-power ratio 8.7 kg/Hp, 114.7 Hp/tonne
Weight-to-torque ratio 5.4 kg/Nm, 185.6 Nm/tonne
Electric cars and hybrids specs
Gross battery capacity 2.1 kWh
Net (usable) battery capacity 1.73 kWh
Battery voltage 200 V
Battery technology Lithium-ion (Li-Ion)
Battery location Under the front seats
Electric motor 1
Electric motor power 204 Hp
Electric motor Torque 330 Nm

243.4 lb.-ft.
Electric motor location Front axle, Transverse
System power 204 Hp
System torque 330 Nm
243.4 lb.-ft.
Internal combustion engine specs
Power 158 Hp @ 4600 rpm.
Power per litre 105.5 Hp/l
Torque 250 Nm @ 2400-4400 rpm.
184.39 lb.-ft. @ 2400-4400 rpm.
Engine layout Front, Transverse
Engine Model/Code KR15DDT
Engine displacement 1497 cm3
91.35 cu. in.
Number of cylinders 3
Engine configuration Inline
Cylinder Bore 84 mm
3.31 in.
Piston Stroke 90.1 mm
3.55 in.
Compression ratio 14:1
Number of valves per cylinder 4
Fuel injection system Direct injection
Engine aspiration Turbocharger, Intercooler
Engine oil capacity 5.1 l
5.39 US qt | 4.49 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 8.4 l
8.88 US qt | 7.39 UK qt
Engine systems Start & Stop System
Particulate filter

Space, Volume and weights
Kerb Weight 1778-1828 kg
3919.82 – 4030.05 lbs.
Max. weight 2245 kg
4949.38 lbs.
Max load 417-467 kg
919.33 – 1029.56 lbs.
Trunk (boot) space – minimum 575 l
20.31 cu. ft.
Trunk (boot) space – maximum 1396 l
49.3 cu. ft.
Fuel tank capacity 55 l
14.53 US gal | 12.1 UK gal
Permitted trailer load with brakes (12%) 670 kg
1477.1 lbs.
Permitted trailer load without brakes 670 kg
1477.1 lbs.
Permitted towbar download 100 kg
220.46 lbs.
Dimensions
Length 4680 mm
184.25 in.
Width 1840 mm
72.44 in.
Width including mirrors 2065 mm
81.3 in.
Height 1720 mm
67.72 in.
Wheelbase 2705 mm
106.5 in.
Minimum turning circle (turning diameter) 11.1 m
36.42 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the generator only, with no mechanical connection to the drive. An electric motor drives the front wheels.
Drive wheel Front wheel drive
Number of gears and type of gearbox 1 gears, automatic transmission
Front suspension Independent type McPherson
Rear suspension Independent multi-link suspension
Front brakes Ventilated discs
Rear brakes Ventilated discs
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 235/60 R18 103H; 235/55 R19 101V; 255/45 R20 101V
Wheel rims size 7.5J x 18; 7.5J x 19; 8.0J x 20
